Electric Reach Truck

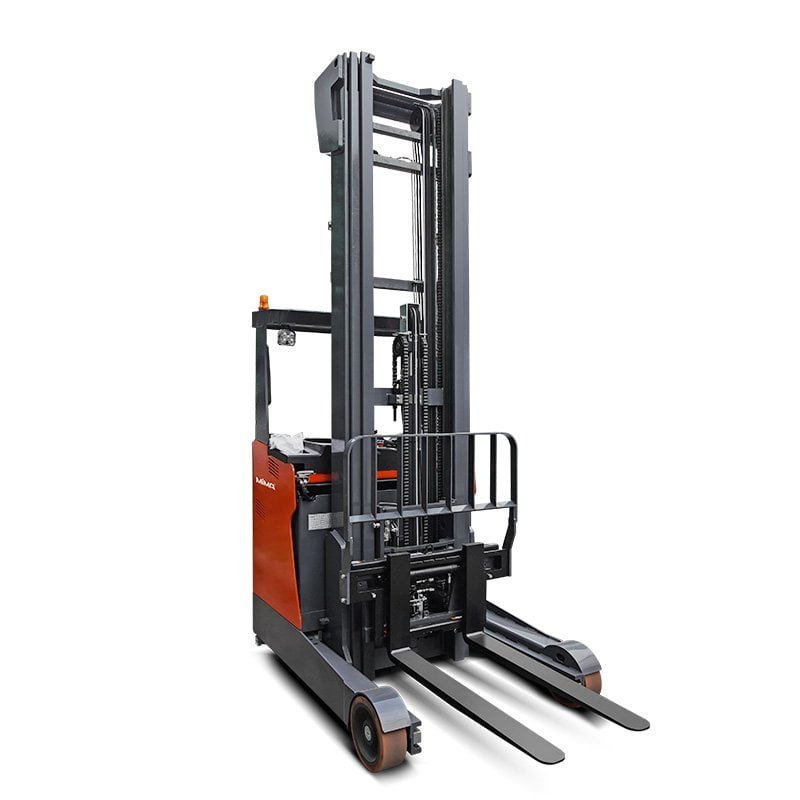

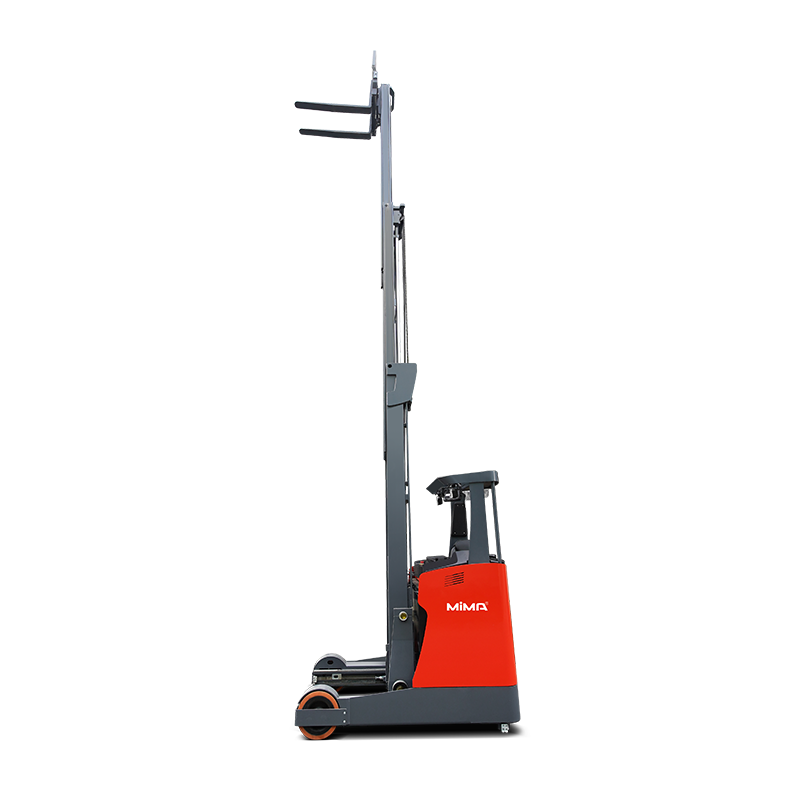

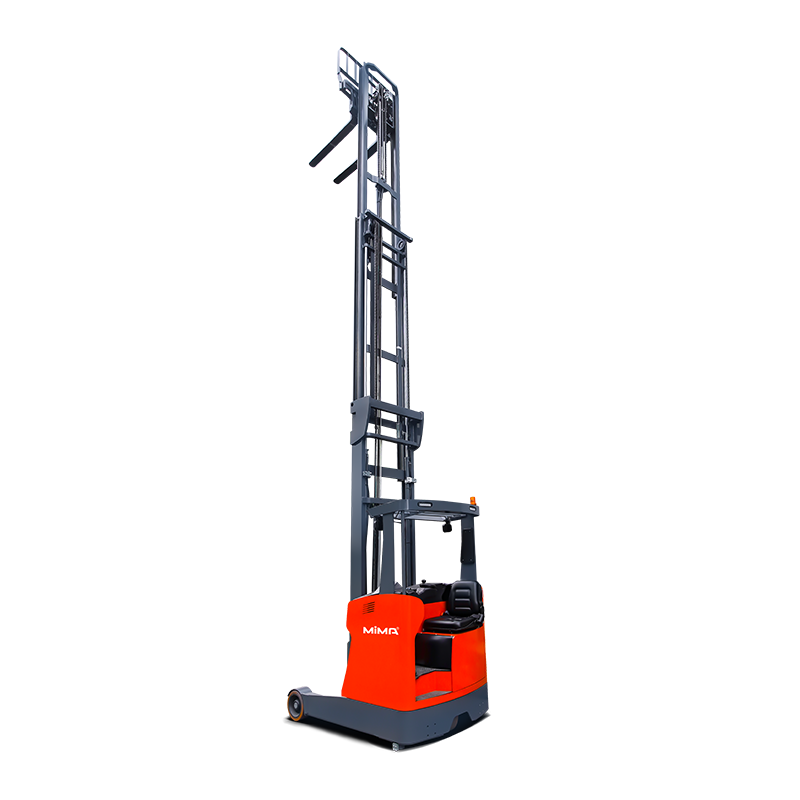

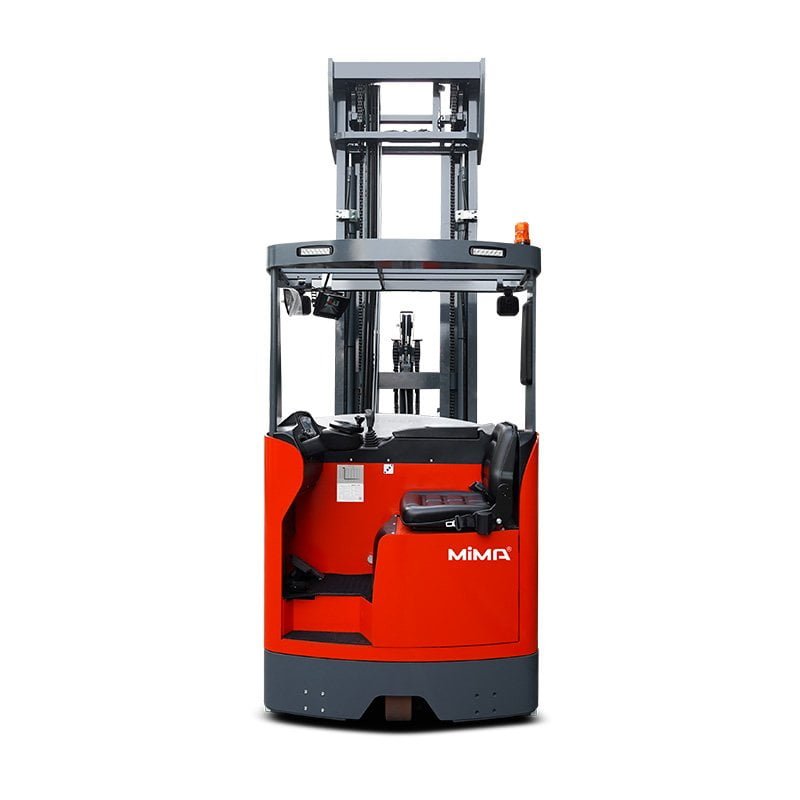

1.6–3.0 Ton Seated Electric Reach Truck

Model: 2MFZ16 / 2MFZ20 / 2MFZ25 / 2MFZ30 Series
Capacity: 1600–3000 kg
Lift Height: Up to 12500 mm

Description:

The 2MFZ Series seated electric reach truck is designed for medium-density storage, high-turnover pallet handling and narrow aisle stacking applications. With 1600–3000 kg load capacity, lift height options up to 12500 mm, high-stability mast design, electric steering, spacious seated cabin and full AC system, it provides a strong reach truck solution for demanding warehouse

Model	Capacity	Lift Height
MFZ16 / MFZ20 / MFZ25 / MFZ30	1600kg / 2000kg / 2500kg / 3000kg	3600–12500 mm / 3600–12500 mm / 3600–12500 mm / 3600–12500 mm

Request a Quote View Datasheet

Product Highlights

Seated Reach Design

Comfortable operation for longer working shifts.

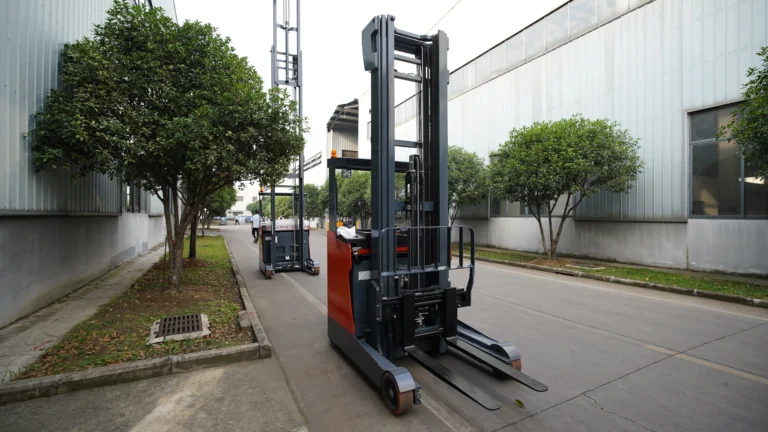

1.6–3.0 Ton Capacity

Covers light to heavy pallet handling needs.

High-Stability Mast

Supports stable high-level pallet handling.

Better Visibility

Narrow mast design improves operator sightlines.

Full AC System

Efficient performance with lower maintenance.

Height Preset Option

Improves efficiency in repeated rack operations.

Specification	MFZ16	MFZ20	MFZ25	MFZ30
Model	MFZ16	MFZ20	MFZ25	MFZ30
Operation Type	Seated	Seated	Seated	Seated
Load Capacity	1600kg	2000kg	2500kg	3000kg
Lift Height	3600–12500 mm	3600–12500 mm	3600–12500 mm	3600–12500 mm
Mast Type	—	—	—	—
Fork Outside Spread	232–750 mm	232–750 mm	232–750 mm	232–750 mm
Aisle Width	Approx. 2707–2979 mm	Approx. 2707–2979 mm	Approx. 2707–2979 mm	Approx. 2707–2979 mm
Battery Specification	Lead-acid: 48V / 420–700Ah; Lithium: 48V / 300–460Ah	Lead-acid: 48V / 420–700Ah; Lithium: 48V / 300–460Ah	Lead-acid: 48V / 420–700Ah; Lithium: 48V / 300–460Ah	Lead-acid: 48V / 420–700Ah; Lithium: 48V / 300–460Ah

Download Full Datasheet

Product Details

Designed for High-Turnover Warehouse Operations

The 2MFZ Series is suitable for customers who need seated reach truck comfort and higher productivity in warehouse pallet handling.
It is designed for medium storage density, narrow aisle stacking and frequent pallet storage or retrieval.
This makes it a strong product range for distribution centres, manufacturing warehouses and logistics operations.

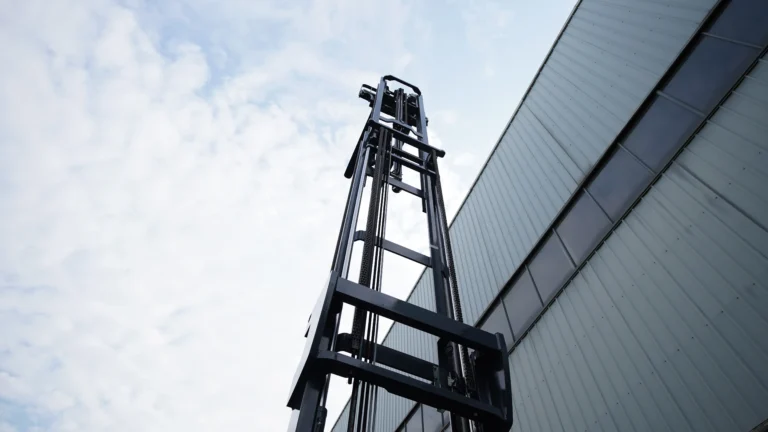

High-Stability Mast for Elevated Pallet Handling

The high-strength mast is designed for strong load capacity and stable high-level operation.
Mast cushioning helps reduce sway and supports smoother handling at height.
Customers benefit from improved confidence when working with taller racking systems.

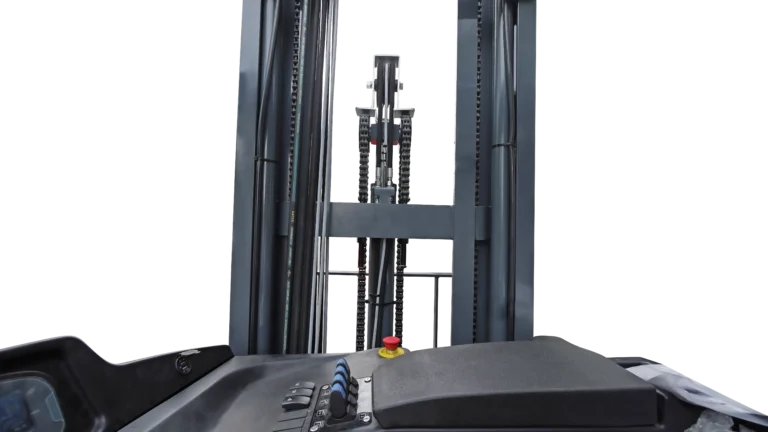

Better Visibility for Safer Operation

Narrow mast design helps improve forward visibility during stacking and retrieval.
Offset free-lift cylinder design improves the central view, while the angled overhead guard beam helps operators observe goods at height.
Streamlined body design helps reduce blind spots when handling pallets at lower levels.

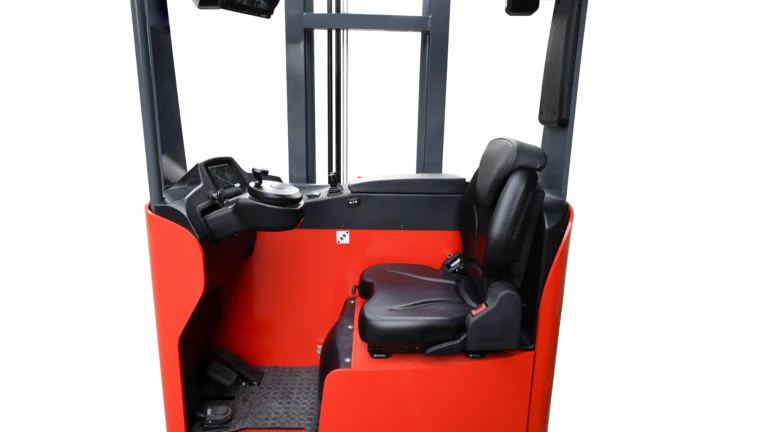

Comfortable Seated Operation

Adjustable seat, spacious cabin, integrated handle and thumb switch improve comfort during long working shifts.
Multifunctional dashboard with wheel display helps operators monitor truck status more easily.
Quiet operation and ergonomic layout make the truck suitable for daily intensive warehouse use.

Efficient Full AC Performance

Full AC system with imported controller supports stable and efficient travel, lifting and steering control.
Faster lifting, lowering and travel speeds help improve warehouse productivity.
180° / 360° steering mode switching can improve aisle operation efficiency by allowing direction changes without unnecessary stopping.

Safety and Configuration Options

All-wheel braking improves braking control on demanding surfaces.
OPS presence detection helps ensure the truck operates only when the operator is correctly positioned.

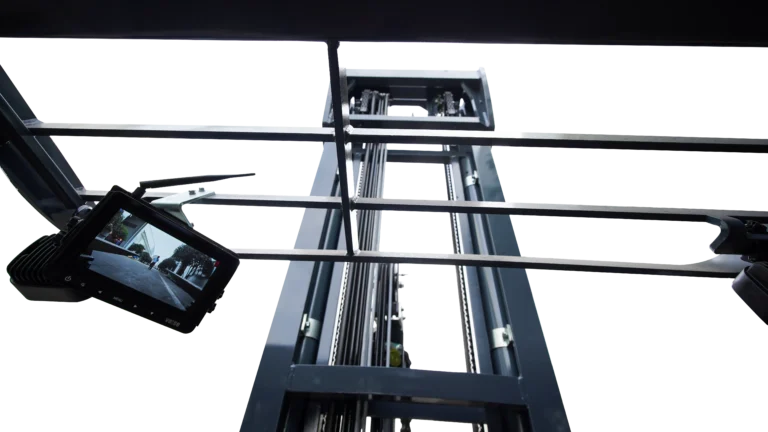

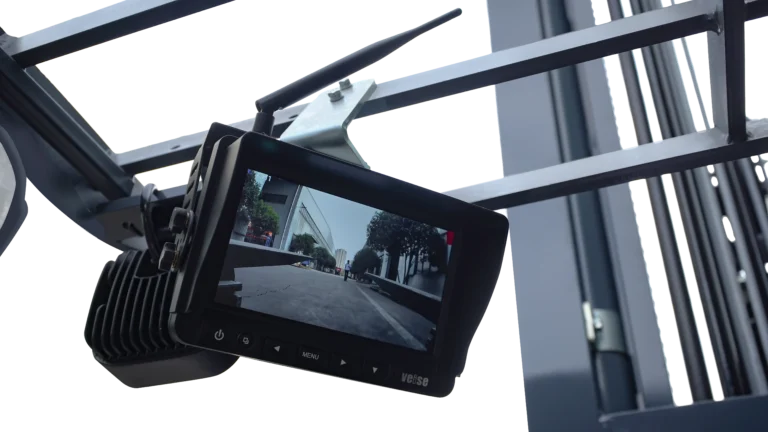

Optional high-level fork camera, laser-assisted positioning and height preset system can improve safety and efficiency in high-rack applications.

What is the 2MFZ Series reach truck used for?

The 2MFZ Series is used for pallet stacking, storage and retrieval in medium-density and high-turnover warehouse operations.

What load capacities are available?

The series covers 1600 kg, 2000 kg, 2500 kg and 3000 kg load capacity options.

What is the maximum lift height?

Depending on configuration, the 2MFZ Series can support lift heights up to 12500 mm.

What aisle width is required?

The required aisle width is approximately 2707–2979 mm depending on model, pallet size and warehouse layout.

What is the difference between 2MFZ S, D, M, H and L versions?

The S version is a multi-valve model, D and M versions are electric proportional models, H versions use larger battery configurations, and the 2MFZ16L is an 80V lithium-focused model.

What battery options are available?

Most models use 48V lead-acid batteries from 420Ah to 700Ah, with lithium options from 48V / 300Ah to 48V / 460Ah. The 2MFZ16L uses an 80V / 175Ah lithium battery.

Can height preselection be configured?

Yes. Height preselection is available as an option to improve efficiency in repeated rack operations.
