Stack Without Turning

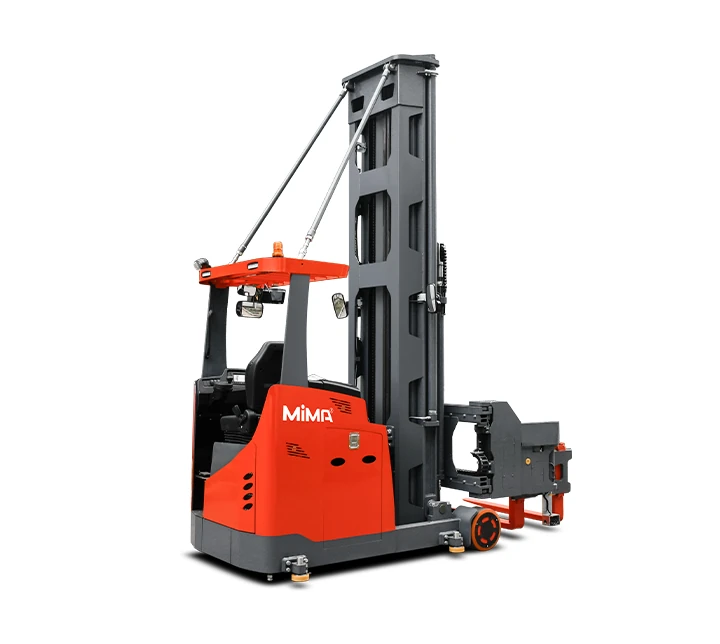

The rotating and side-shifting fork handles pallets on either side without turning the truck.
3-way Pallet Stacker

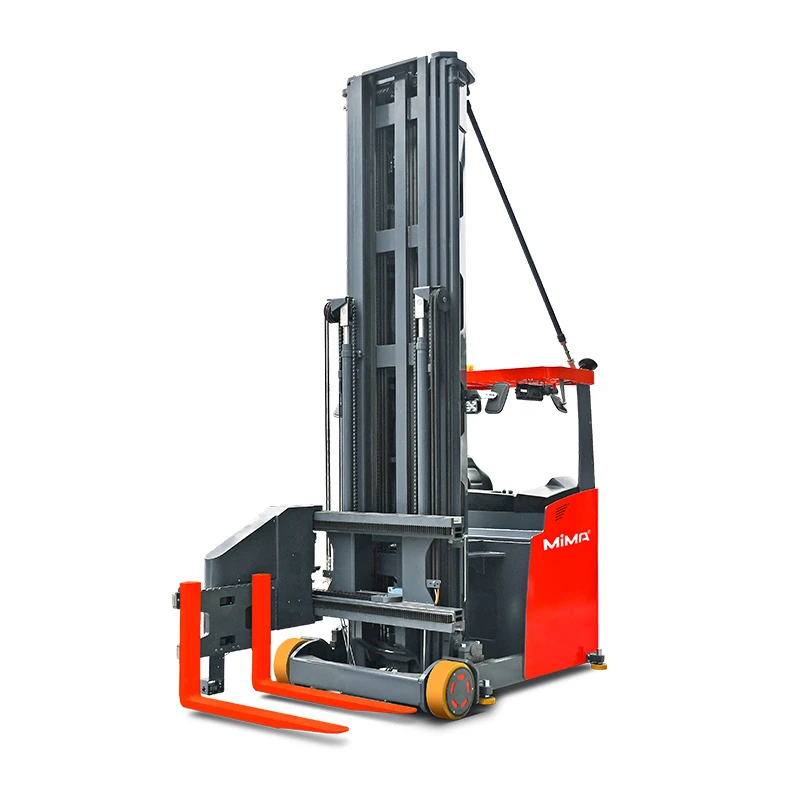

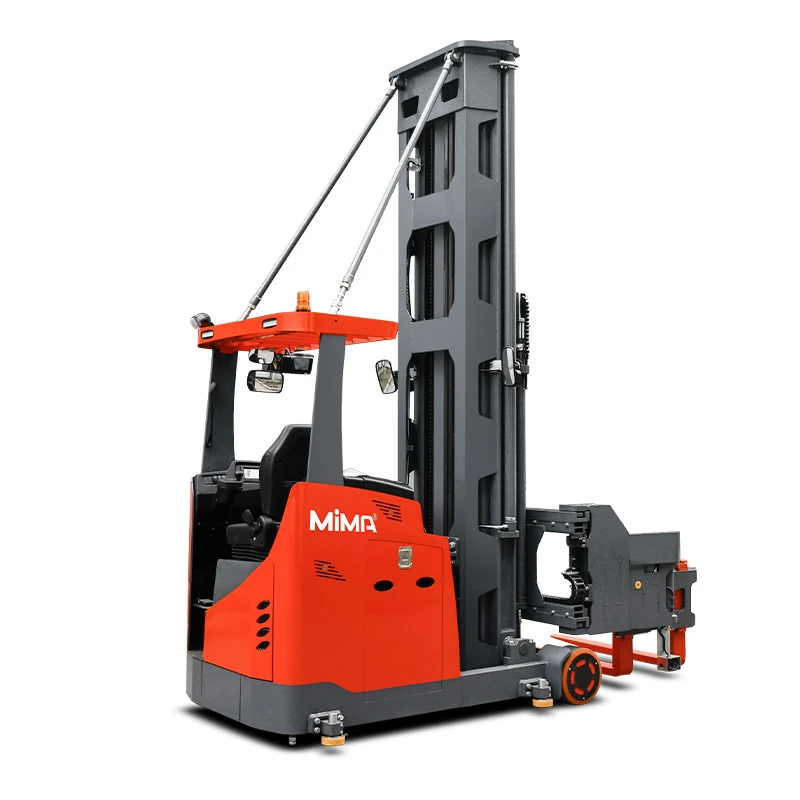

1.6T Seated Man-down Electric VNA Forklift MCA16
MCA16 is a 1.6-tonne seated man-down VNA forklift for full-pallet storage in very narrow aisles. Its electric three-way fork rotates, side-shifts and returns to centre for stacking on either side without turning the truck. Mechanical guide rail, permanent-magnetic and electromagnetic navigation configurations are available, with lift heights up to 12,000 mm.
Ideal For
- High-density warehouses with stacking aisles from 1,600 mm
- Medium- and high-level full-pallet storage and retrieval
- Guided VNA installations requiring controlled aisle travel
Product Features
Product Highlights
Practical features developed for safer, more efficient material handling.

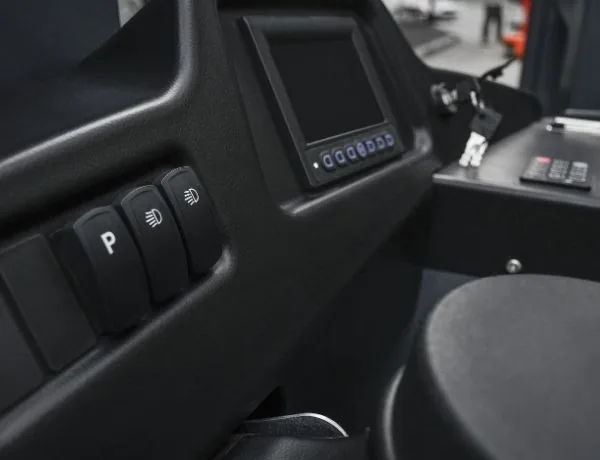

Multiple Navigation Configurations
Mechanical guide rail, permanent-magnetic and electromagnetic configurations suit different warehouse layouts.

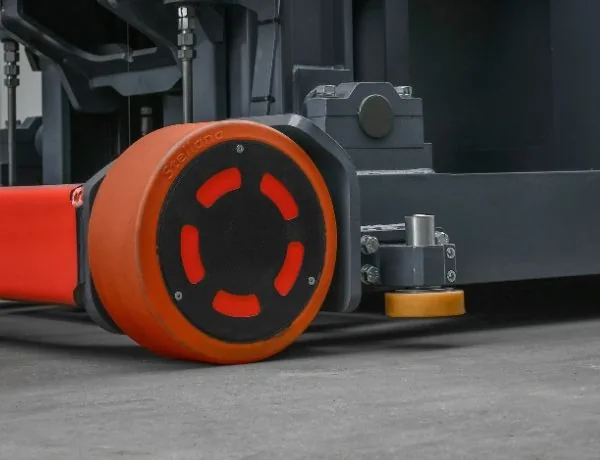

High Residual Capacity
Retains 1,600 kg at a 600 mm load centre up to 6,500 mm.
Product Data
Technical Specifications
Compare the available MCA16 configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | MCA16 |
|---|---|
| Model | MCA16 |
| Operation Type | Seated |
| Load Capacity | 1600kg |
| Lift Height | 3,000–12,000 mm |
| Mast Type | Duplex / Triplex Full-free |
| Fork Outside Spread | 265–765 mm |
| Aisle Width | 1,600 mm mechanical / 1,650 mm magnetic |
| Battery Specification | 48V/600Ah lead-acid standard |
Product Overview
Product Details
Seated VNA Pallet Handling

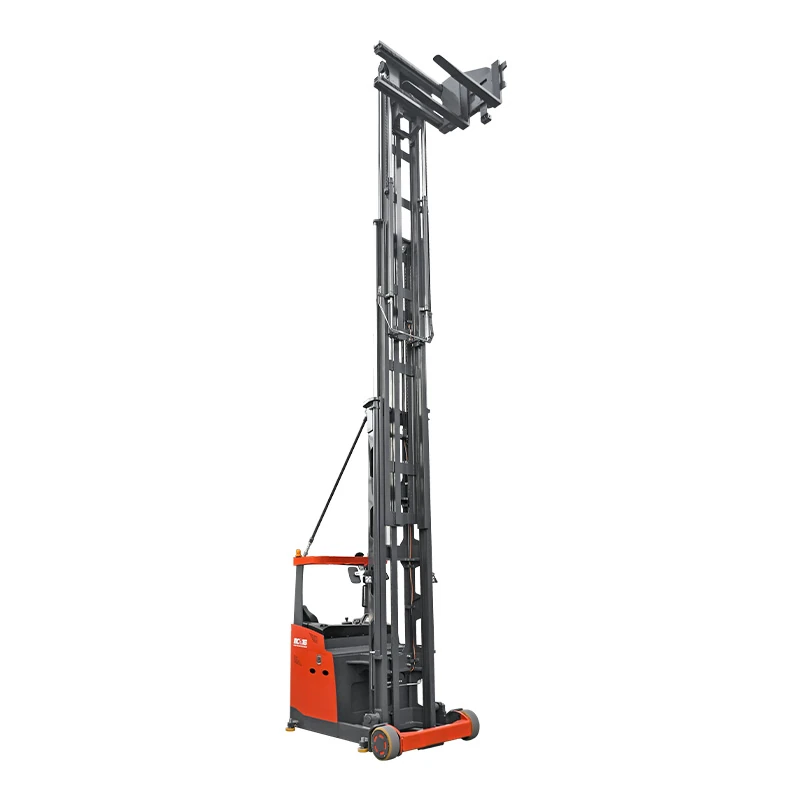

The MiMA MCA16 is a 1.6-tonne seated man-down VNA forklift for full-pallet handling in high-density warehouses. Duplex and triplex mast configurations provide lift heights from 3,000 to 12,000 mm.
Electric Three-Way Fork
The electric fork rotates and side-shifts to stack on either side without turning the truck. Linked fork movement and one-button centring simplify pallet positioning in narrow aisles.
Configurable Aisle Navigation
Mechanical guide rail is standard, with guided-aisle, low-rail, permanent-magnetic and electromagnetic navigation options available. Depending on the configuration, RFID or photoelectric mode switching and automatic aisle entry can also be provided.
Visibility and Aisle Assistance
The full AC system combines Curtis control and electric power steering. A fork camera, cross laser and wheel-angle display support high-level handling. Optional functions include height preselection, end-of-aisle speed reduction, laser obstacle detection and automatic addressing.
Product Support
Frequently Asked Questions
Find answers to common questions about MCA16, or contact MiMA Australia for application-specific advice.
Q1: What type of VNA forklift is the MCA16?
The MCA16 is a seated man-down three-way pallet stacker. The operator remains at ground level while the forks handle full pallets in medium- and high-level racking.
Q2: What is the minimum stacking aisle width?
The minimum specified width is 1,600 mm for a 1,200 × 1,200 mm pallet with mechanical guide rails. A magnetic-guidance configuration requires approximately 1,650 mm.
The final aisle width must also account for pallet overhang, load centre, rack clearance, lift height and floor condition.
Q3: Which navigation mode should be selected?
Mechanical guide rails are suitable for permanent VNA installations requiring reliable guidance and high travel efficiency.
Surface-mounted magnetic strips require less construction work and may suit rented or existing warehouses. Buried magnetic strips remove surface obstacles, while electromagnetic guidance provides stable tracking through a powered wire loop.
The choice should be made during the warehouse layout review.
Q4: What is the difference between mechanical guide mode and guided-aisle mode?
Standard mechanical guide rails physically keep the truck aligned, but the operator may still make minor steering corrections.
Guided-aisle mode uses RFID or photoelectric detection to identify the aisle and switch the truck into controlled aisle operation, reducing the need for steering input.
Q5: Does the MCA16 need to turn inside the stacking aisle?
No. The fork rotates and side-shifts towards either side of the racking while the truck remains straight. Main-aisle space is still required to enter and leave the VNA aisle.
Q6: Can the MCA16 lift 1,600 kg to 12 metres?
No. The full 1,600 kg capacity is retained up to 6,500 mm at a 600 mm load centre. Capacity reduces progressively above this height and is 500 kg at 12,000 mm.
Q7: Does magnetic navigation include automatic aisle entry?
Automatic aisle entry is available with suitable permanent-magnetic or electromagnetic navigation configurations. Main-aisle clearance must account for whether aisle entry is manual or automatic.
For a 1,200 × 1,200 mm pallet, the datasheet specifies a 400 mm main-aisle safety margin for mechanical or manual magnetic entry and 900 mm for automatic magnetic entry.
Q8: What does the optional aisle safety system provide?
The ASS package can apply end-of-aisle deceleration or stopping, area-specific speed limits and height restrictions. Laser obstacle detection and automatic addressing are separate configuration options.
Q9: What floor conditions are required?
VNA operation requires a level floor with sufficient flatness and load-bearing capacity. As a project guideline, the technical documentation references C30 concrete and a distributed floor capacity of at least 2.5 tonnes per square metre, subject to the selected truck and load.
For lift heights of 9 metres or above, a floor flatness report should be supplied for technical review. The MCA16 is not permitted to operate on slopes.
Q10: What information is required before ordering?
Please provide the pallet dimensions, maximum load, load centre, top rack height, aisle and main-aisle widths, rack clearances, floor report, navigation preference, required throughput, battery preference and any height-preselection or aisle-safety requirements.
