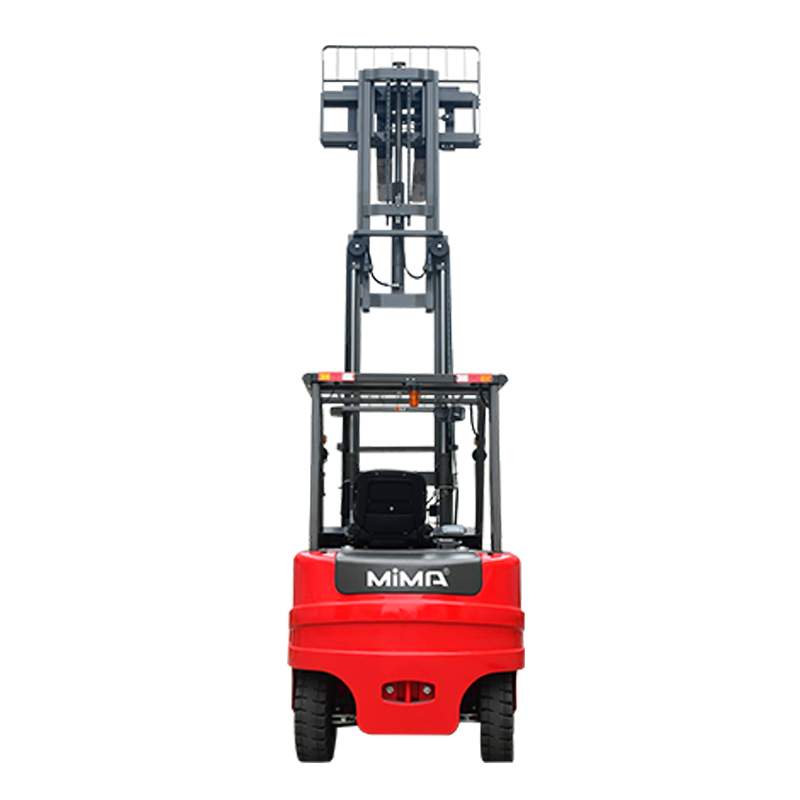

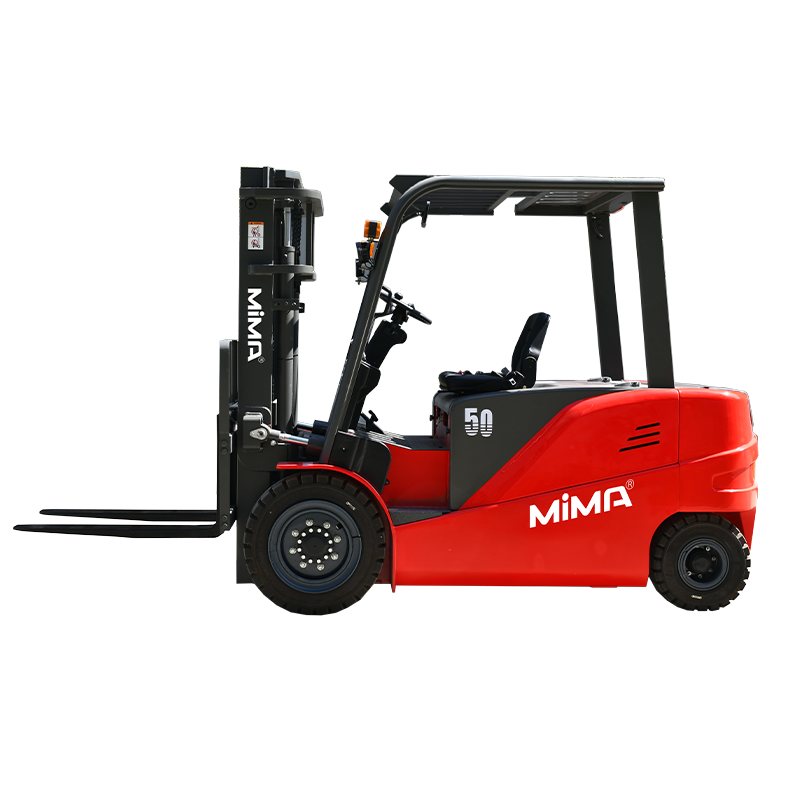

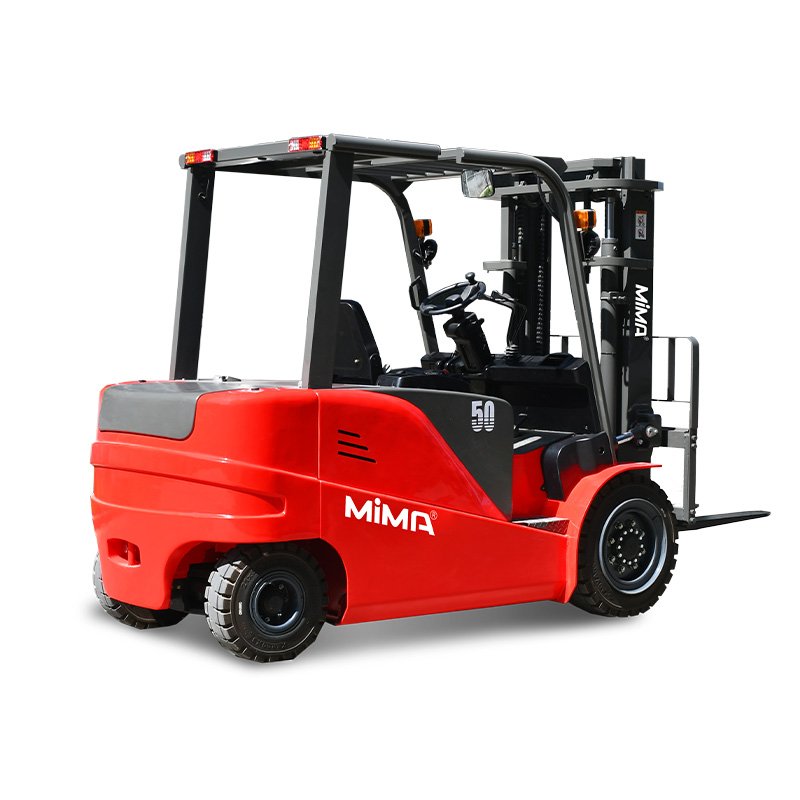

The MK45 / MK50 4-wheel electric counterbalance forklift is designed for medium to heavy-duty material handling where load capacity, operating efficiency, and reliable electric performance are essential. With a stable 4-wheel structure, AC maintenance-free system, high-capacity battery options, and ergonomic operator design, it supports demanding warehouse, logistics, manufacturing, and indoor-outdoor transfer operations.
| Model | Capacity | Lift Height |
|---|---|---|
| MK45 / MK50 | 4500kg / 5000kg | Up to 6000 mm / Up to 6000 mm |
Handles 4.5–5.0 ton loads for demanding operations.
Improves stability during turning and load handling.
Maintenance-free electric power for efficient daily operation.
Supports longer working time in heavy-duty applications.
Improves visibility for safer pallet handling.
Wide-opening cover simplifies battery service and inspection.
| Specification | MK45 | MK50 |
|---|---|---|
| Model | MK45 | MK50 |
| Operation Type | Seated | Seated |
| Load Capacity | 4500kg | 5000kg |
| Lift Height | Up to 6000 mm | Up to 6000 mm |
| Mast Type | quad mast | — |
| Fork Outside Spread | 320–1320 mm | 320–1320 mm |
| Aisle Width | >4420 mm | >4420 mm |
| Battery Specification | Lead-acid: 80V / 560–630Ah standard; Lithium: 80V / 300Ah standard | Lead-acid: 80V / 560–630Ah standard; Lithium: 80V / 300Ah standard |
The MK45 / MK50 is a heavy-duty 4-wheel electric counterbalance forklift designed for businesses that require higher load capacity, reliable performance, and efficient electric operation. With 4500 kg and 5000 kg capacity options, this model is suitable for medium and heavy-duty pallet handling, stacking, warehouse transfer, container loading and unloading, and industrial material movement.
The truck adopts a single-drive mechanical differential axle design, a full AC maintenance-free system, and a high-ratio gearbox to support stronger climbing ability and reliable traction. This makes the MK45 / MK50 suitable for operations where efficiency, travel speed, lifting performance, and battery capacity are important.
For improved stability, the drive motor uses a transverse parallel layout, while the battery is positioned low in the truck body to reduce the centre of gravity. This helps improve turning smoothness, driving comfort, and overall load handling confidence.
The operator area is designed for comfort and control, with an adjustable steering wheel and adjustable seat to support a better driving position during long shifts. The wide-view mast improves operator visibility, helping reduce blind spots during pallet handling and stacking.
Safety and efficiency are supported by lift limit protection, automatic lowering speed control, lowering buffer, regenerative braking, reverse braking, ramp anti-rollback, LED lighting, and high-frequency MOSFET control. The wide-opening hood design also makes battery replacement, inspection, and maintenance more convenient.
The MK45 / MK50 is suitable for warehouses, logistics centres, manufacturing plants, cold storage operations, high-frequency handling areas, and applications where internal combustion forklifts are less suitable.
