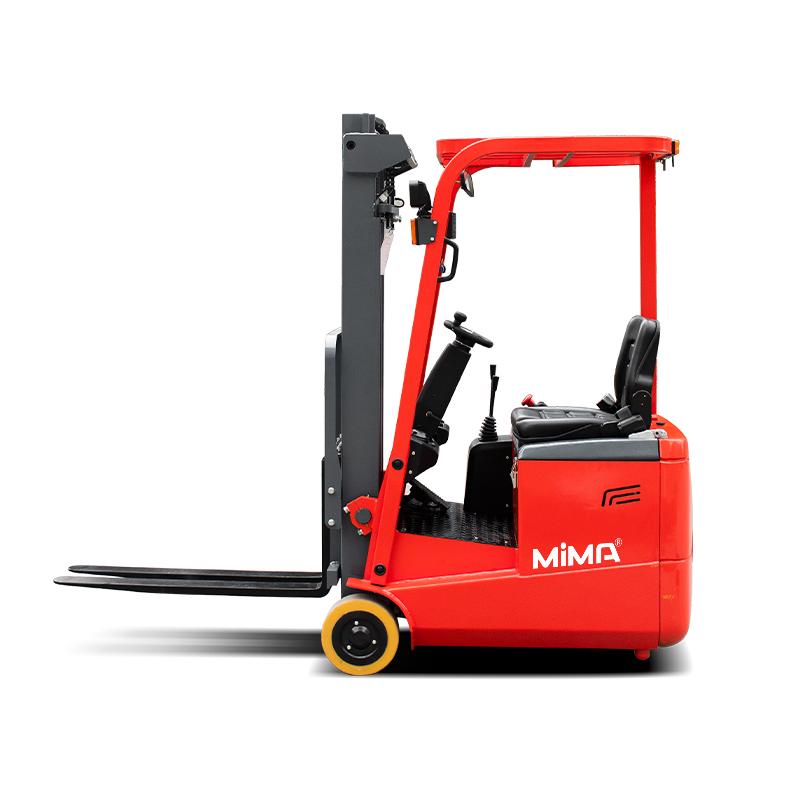

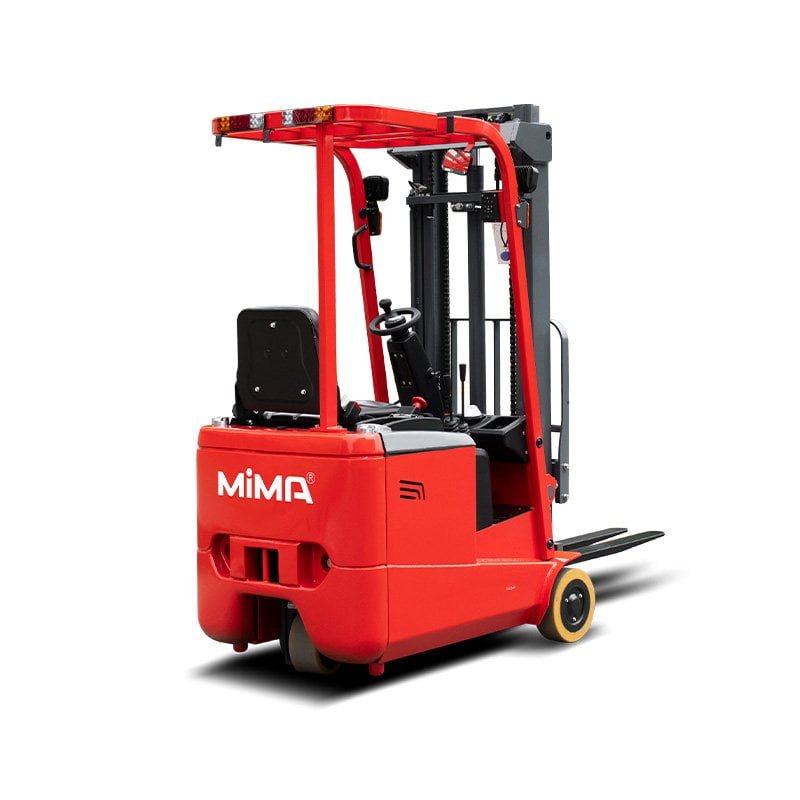

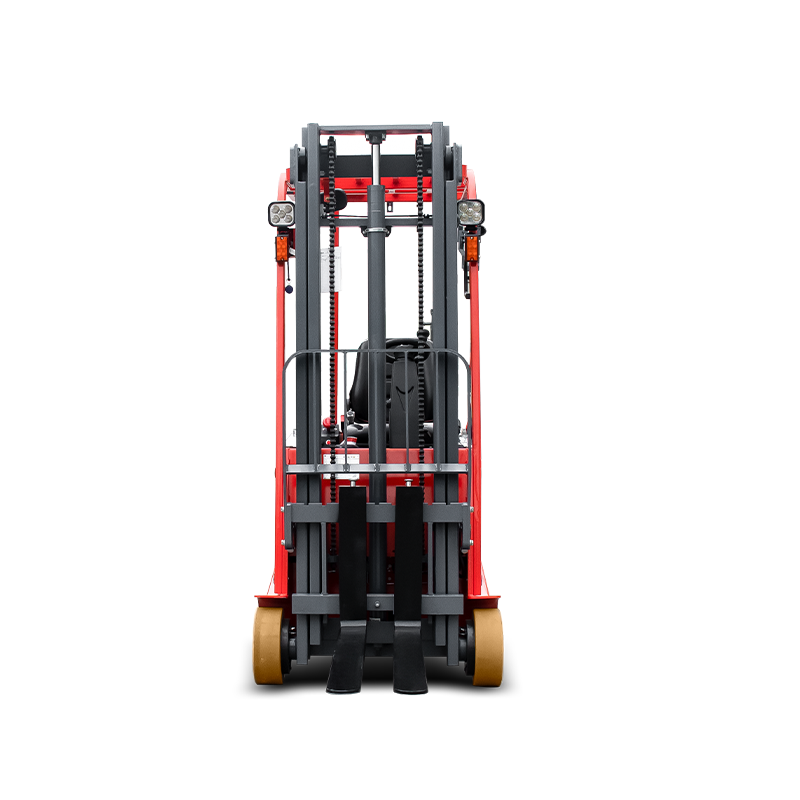

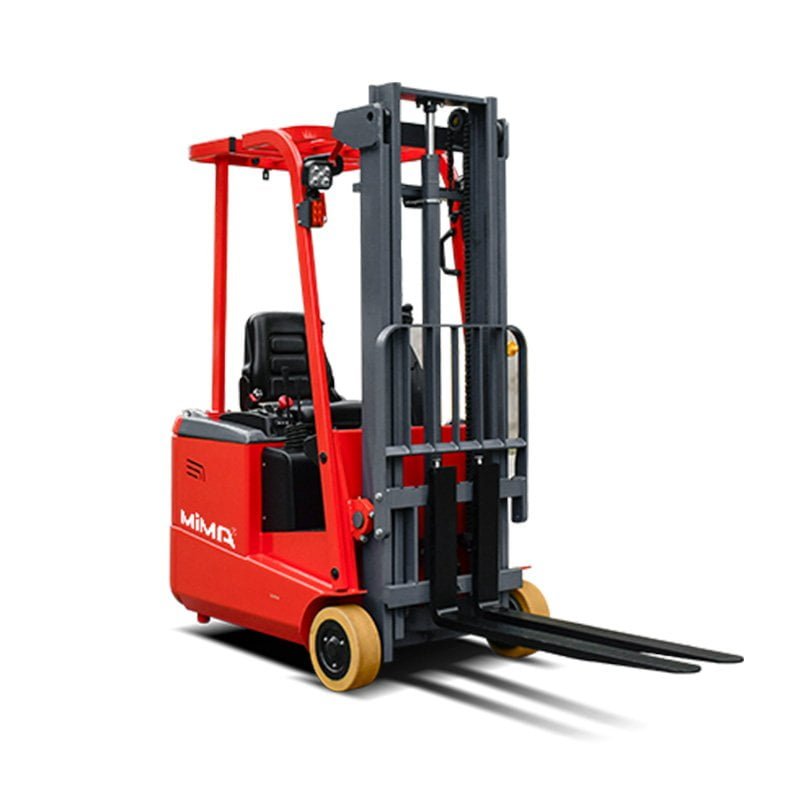

The TKA10 / TKA15 compact 3-wheel electric forklift is designed for light-duty material handling in narrow aisles, indoor warehouses, and floor-level operations. With its compact body, lightweight structure, and responsive electric steering, it provides excellent manoeuvrability for workplaces where space is limited and operational flexibility is essential.
| Model | Capacity | Lift Height |
|---|---|---|
| TKA10 / TKA15 | 1000kg / 1500kg | Up to 4500 mm / Up to 4500 mm |
The compact 3-wheel structure allows the forklift to operate smoothly in narrow spaces, tight aisles, and limited warehouse areas where larger forklifts may be difficult to manoeuvre.
With its smaller size and lighter body weight, the TKA10 / TKA15 is suitable for floor-level operations and applications where ground load and working space are important considerations.
The AC drive system delivers responsive operation, accurate control, and reduced maintenance requirements, helping operators work more efficiently during daily warehouse tasks.
The electric steering system reduces steering effort, improves driving comfort, and supports smoother operation during frequent turning and positioning.
Multi-way valve control enables accurate lifting and tilting of the forks, helping operators handle pallets with better control and improved safety.
Standard turning speed limitation and high-lift speed limitation help improve operational safety, especially during turning, lifting, and confined-space handling.
| Specification | TKA10 | TKA15 |
|---|---|---|
| Model | TKA10 | TKA15 |
| Operation Type | Seated | Seated |
| Load Capacity | 1000kg | 1500kg |
| Lift Height | Up to 4500 mm | Up to 4500 mm |
| Mast Type | duplex mast | duplex mast |
| Fork Outside Spread | 220–680 mm | 220–680 mm |
| Aisle Width | 2760–2845 mm | 2760–2845 mm |
| Battery Specification | Lead-acid: 24V / 300–480Ah; Lithium: 24V / 150–300Ah | Lead-acid: 24V / 300–480Ah; Lithium: 24V / 150–300Ah |
The TKA10 / TKA15 is a compact 3-wheel electric forklift designed for light-duty warehouse handling, small storage areas, and indoor logistics operations.
Its compact dimensions and lightweight structure make it especially suitable for narrow spaces, floor-level applications, and working environments where conventional counterbalance forklifts may be too large.
Powered by a maintenance-free AC drive system, the forklift offers responsive performance and precise control for daily pallet handling. The electric steering system helps reduce operator effort, while the hydraulic control system provides smooth lifting and tilting operation.
For safety, the TKA10 / TKA15 is equipped with turning speed limitation and high-lift speed limitation functions.
These features help improve stability and control during operation, making the truck a practical choice for warehouses, retail storage areas, small factories, and indoor material handling environments.
This model is suitable for businesses looking for a compact, energy-efficient electric forklift for light-duty pallet handling and space-restricted operations.
