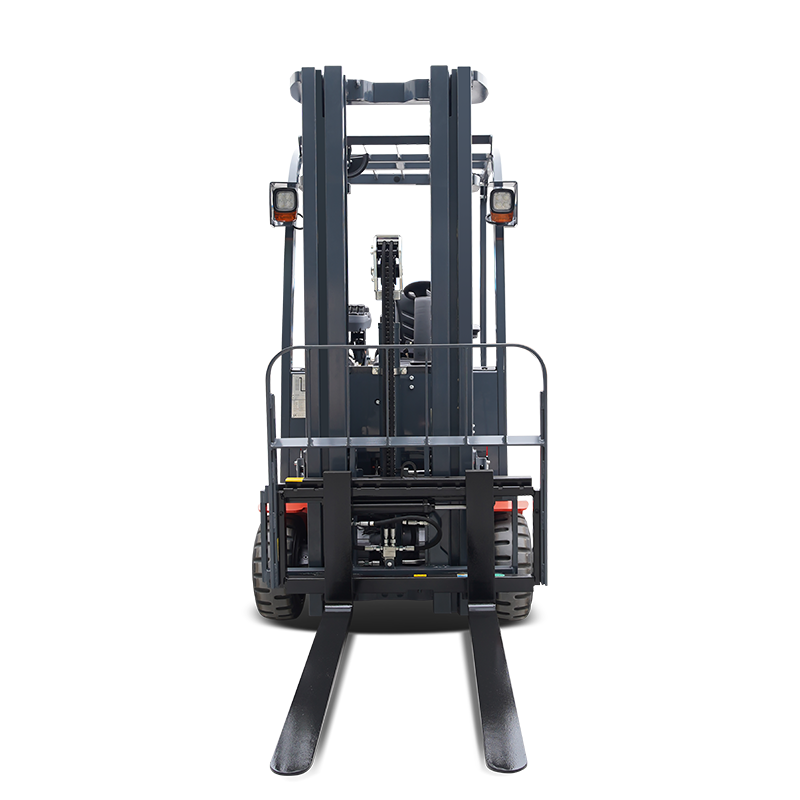

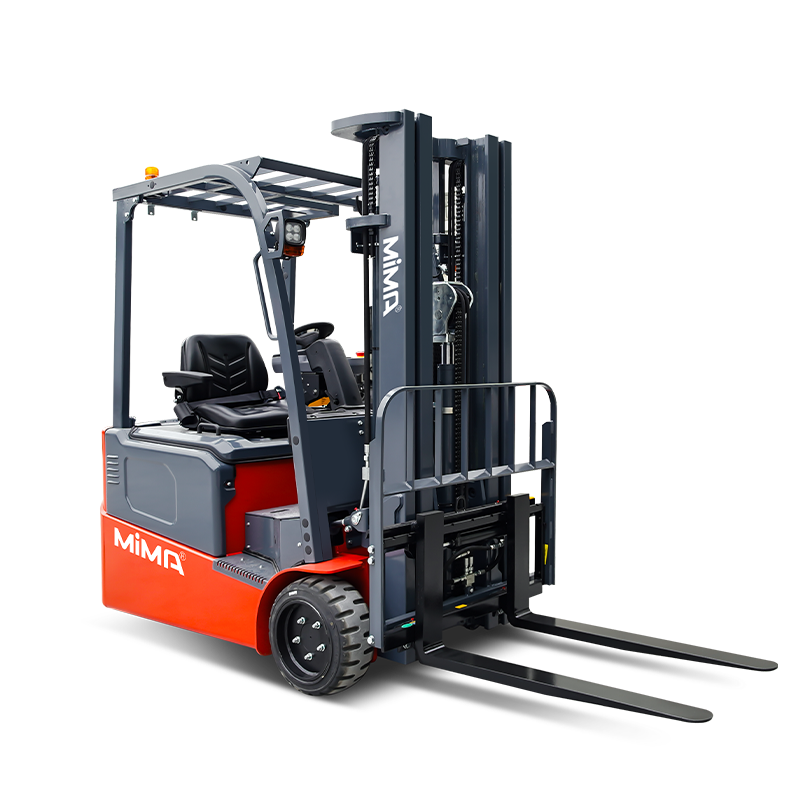

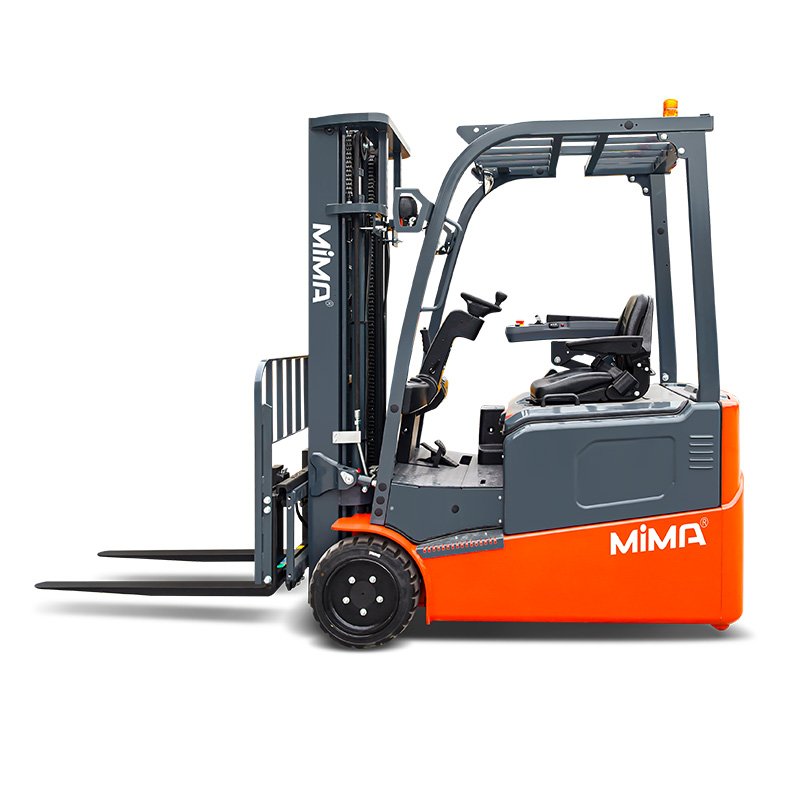

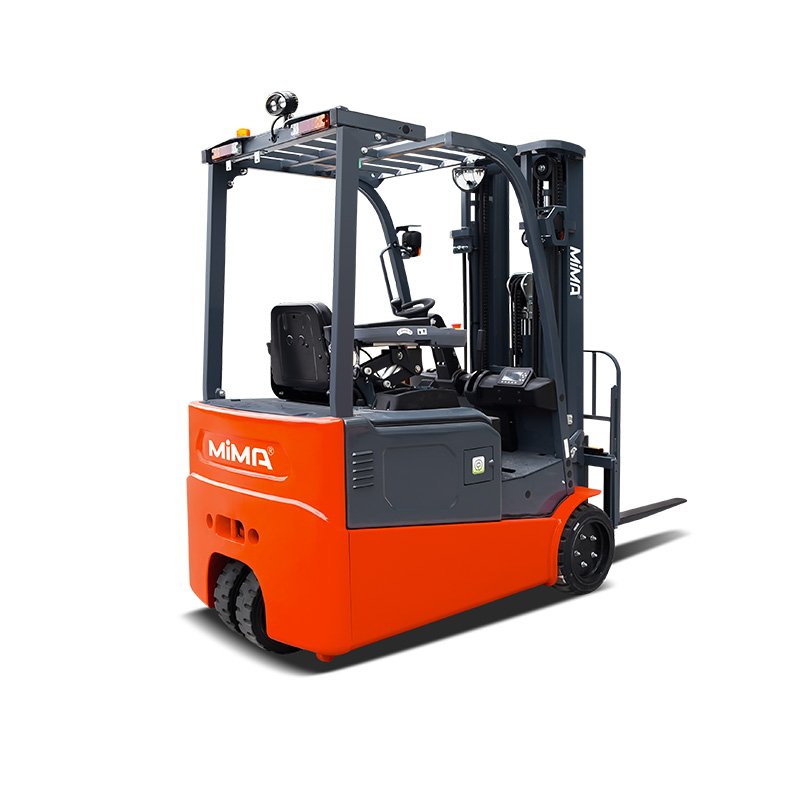

The TKC16 / TKC20 3-wheel electric forklift is built for high-frequency warehouse and logistics operations requiring stronger traction, smooth control, and reliable electric performance. With dual front-drive motors, electric steering, a full AC system, and a stable low-centre design, it delivers efficient handling for demanding indoor and outdoor material handling tasks.
| Model | Capacity | Lift Height |
|---|---|---|
| TKC16 / TKC20 | 1600kgs / 2000kgs | Up to 7500 mm / Up to 7500 mm |
The dual front-drive design provides stronger traction and improved climbing ability, making the forklift suitable for more demanding warehouse and logistics operations.
The full AC drive system helps reduce maintenance requirements while providing efficient performance, smooth acceleration, and reliable operation.
The battery is positioned low in the truck body, helping improve stability, turning smoothness, and operator confidence during handling operations.
The adjustable steering wheel and adjustable seat allow operators to find a comfortable driving position, supporting longer operating hours with reduced fatigue.
The large LED display provides battery level, working hours, and fault diagnosis information, helping operators monitor truck status more easily.
The operator presence system helps improve workplace safety by monitoring operator status and supporting safer operation during daily handling tasks.
| Specification | TKC16 | TKC20 |
|---|---|---|
| Model | TKC16 | TKC20 |
| Operation Type | Seated | Seated |
| Load Capacity | 1600kgs | 2000kgs |
| Lift Height | Up to 7500 mm | Up to 7500 mm |
| Mast Type | — | — |
| Fork Outside Spread | 218–930 mm | 218–930 mm |
| Aisle Width | 3286–3291 mm | 3286–3291 mm |
| Battery Specification | Lead-acid: 48V / 400–490Ah standard; Lithium: 48V / 300–410Ah standard | Lead-acid: 48V / 400–490Ah standard; Lithium: 48V / 300–410Ah standard |
The TKC16 / TKC20 is a high-performance 3-wheel electric forklift designed for medium-duty pallet handling, warehouse logistics, container loading and unloading, and high-frequency material transfer.
Compared with compact light-duty models, this forklift provides stronger power, higher lift capability, and improved operational stability.
Its dual front-drive motors provide additional traction for climbing and demanding working conditions.
Combined with electric steering and a full AC maintenance-free system, the forklift delivers accurate control, efficient energy use, and reliable daily performance.
The battery is positioned low in the truck body to improve the centre of gravity, supporting better stability and smoother turning.
The ergonomic operator area includes an adjustable steering wheel and adjustable seat, helping operators maintain comfort during long working periods.
Safety functions include lift limit protection, turning speed limitation, automatic lowering speed control, lowering buffer, LED lighting, and an OPS operator presence system.
These features help protect the operator, goods, pallets, and working environment during operation.
The TKC16 / TKC20 is suitable for warehouses, logistics centres, container handling areas, cold storage operations, high-frequency material handling sites, and working environments where internal combustion forklifts are less suitable.
