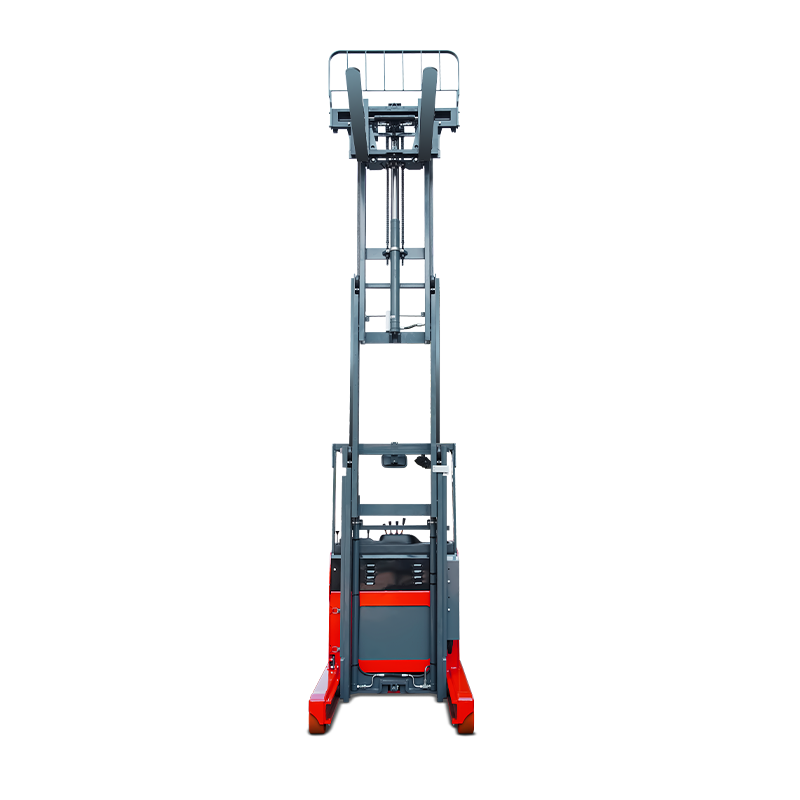

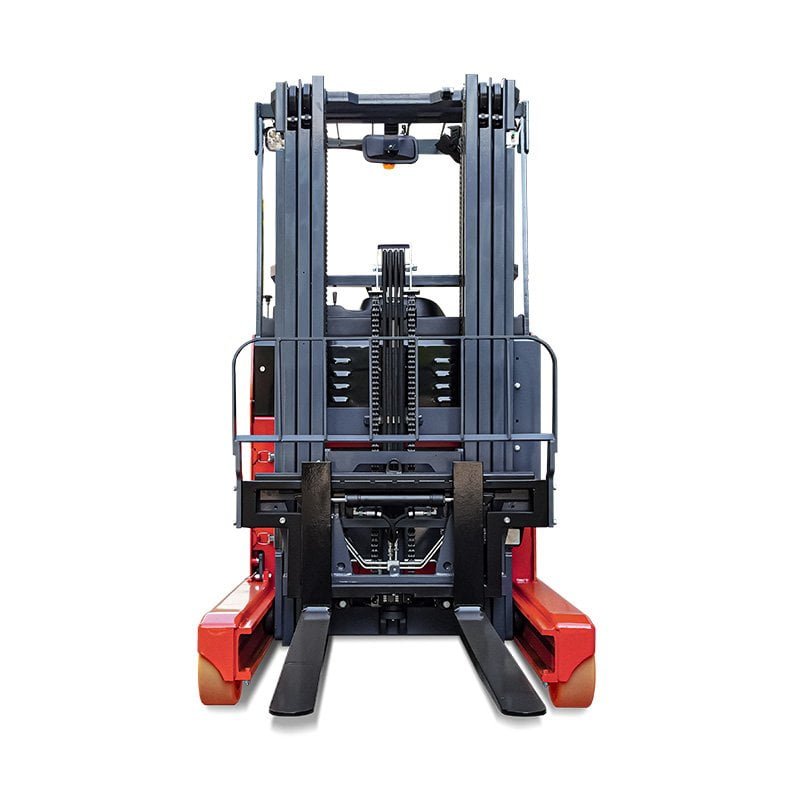

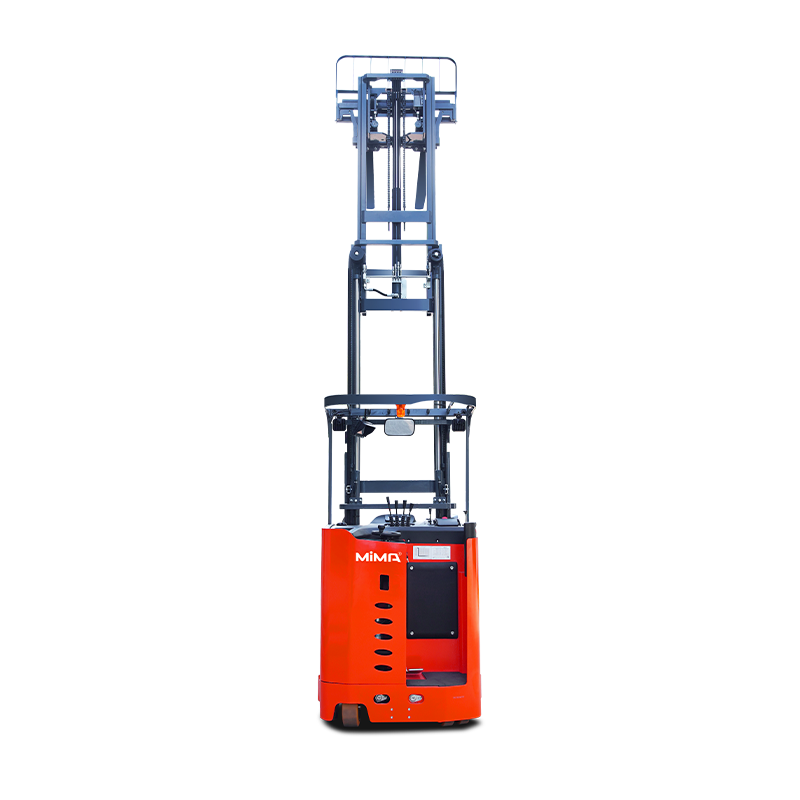

2.5–3.0 Ton Stand-On Electric Reach Truck
2.5–3.0 Ton Stand-On Electric Reach Truck
MF stand-on electric reach truck
MF stand-on electric reach truck
2.5–3.0 Ton Stand-On Electric Reach Truck
Electric Reach Truck

2.5–3.0 Ton Stand-On Electric Reach Truck

  • Model: MF25 / MF30
  • Capacity: 2500–3000 kg
  • Lift Height: Up to 4500 mm

Description:

The MF25 / MF30 stand-on electric reach truck series is designed for higher-capacity pallet handling in medium-density warehouses and narrow aisle storage areas. With 2500–3000 kg load capacity, up to 4500 mm lift height, mast reach movement, electric steering and side-pull battery access, it provides a strong solution for customers who need compact operation with heavier load capability.

Model Capacity Lift Height
MF25 / MF30 2500kg / 3000kg 3000–4500 mm / 3000–4500 mm

Product Highlights

2.5–3.0 Ton Capacity

2.5–3.0 Ton Capacity

Handles heavier warehouse pallet loads.

Stand-On Reach Design

Stand-On Reach Design

Compact operation for warehouse aisles.

Mast Reach Movement

Mast Reach Movement

Improves pallet placement near racks.

Electric Steering

Electric Steering

Reduces effort during repeated handling.

AC Drive System

AC Drive System

Responsive operation with lower maintenance.

Side-Pull Battery

Side-Pull Battery

Supports convenient battery service.

Specification MF25 MF30
Model MF25 MF30
Operation Type Stand-on Stand-on
Load Capacity 2500kg 3000kg
Lift Height 3000–4500 mm 3000–4500 mm
Mast Type ["triple mast"] ["triple mast"]
Fork Outside Spread 244–772 mm 250–750 mm
Aisle Width 2878–2917 mm 3001–3066 mm
Battery Specification Lead-acid: 48V / 400Ah; Lithium: 48V / 300Ah Lead-acid: 48V / 400Ah; Lithium: 48V / 300Ah
Download Full Datasheet

Product Details

Higher Capacity in a Compact Stand-On Platform

  • The MF25 / MF30 series is suitable for customers handling heavier pallets while still needing compact warehouse movement.
  • It covers 2.5 ton and 3.0 ton load classes for more demanding material handling requirements.
  • This gives customers a practical choice when smaller stand-on reach trucks are not enough for daily load demands.

Efficient Narrow Aisle Pallet Handling

  • The reach mast can extend forward and retract to help operators place pallets without moving the whole truck body.
  • This improves control when working close to racks and in restricted warehouse aisles.
  • Customers can improve handling efficiency while maintaining a compact operating footprint.

Practical for High-Turnover Warehouses

  • The series is designed for medium storage density and high-turnover operations.
  • Compact handling and strong load capacity help support daily pallet movement in warehouse environments.
  • This makes the range suitable for customers that need both heavier load support and daily handling productivity.

Operator Comfort and Control

  • Electric steering reduces effort during repeated turning and positioning.
  • Ergonomic control levers, multifunctional display and optional wheel display support easier operation.
  • These details help reduce fatigue during long shifts and frequent pallet movement.

Safety and Visibility for Stacking Work

  • Tilting forks help make pallet stacking safer and more controlled.
  • Overhead guard design supports operator protection during warehouse stacking tasks.
  • Optional HD camera support can improve visibility when handling pallets at height.

Battery Access for Daily Operation

  • Side-pull battery access makes charging, replacement and maintenance more convenient.
  • This helps reduce downtime in operations with frequent battery service needs.
  • Customers benefit from easier daily maintenance and more practical warehouse operation.
What applications are MF25 / MF30 reach trucks suitable for?
They are suitable for heavier pallet handling, medium-density warehouses and narrow aisle stacking applications.
What load capacities are available?
The MF25 supports 2500 kg, while the MF30 supports 3000 kg. And we have another models like MF12 - MF30 for your options.
What aisle width is required?
MF25 typically requires approximately 2878–2917 mm, while MF30 requires approximately 3001–3066 mm depending on pallet size and mast configuration.
What battery options are available?
MF25 / MF30 models can use a 48V / 400Ah lead-acid battery or a 48V / 300Ah lithium battery.
Do these models support side-pull battery access?
Yes. The MF25 / MF30 series uses side-pull battery access for easier service and battery replacement.
Can I request a datasheet for a specific model?
Yes. Contact MiMA to receive the full specification sheet for MF series electric reach truck.
