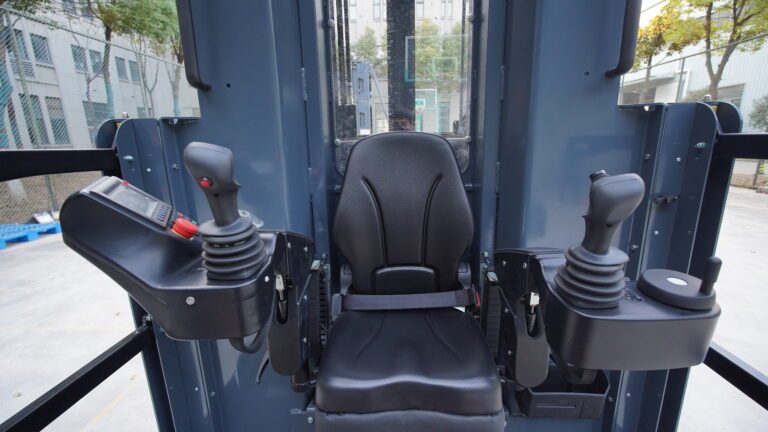

Choose Your Working Position
Adjustable controls and a foldable seat support standing and seated operation.
3-way Pallet Stacker

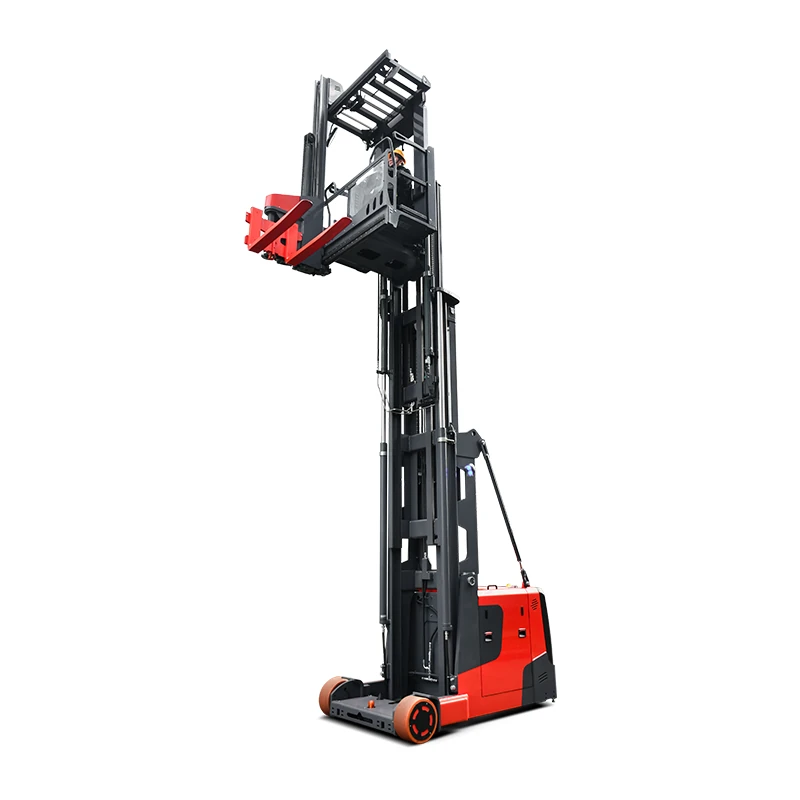

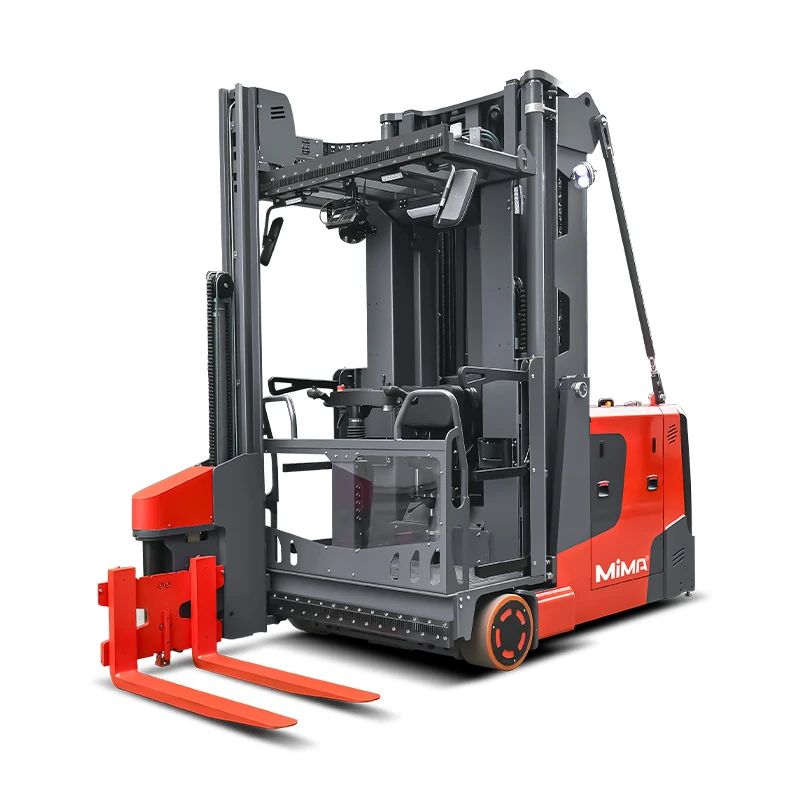

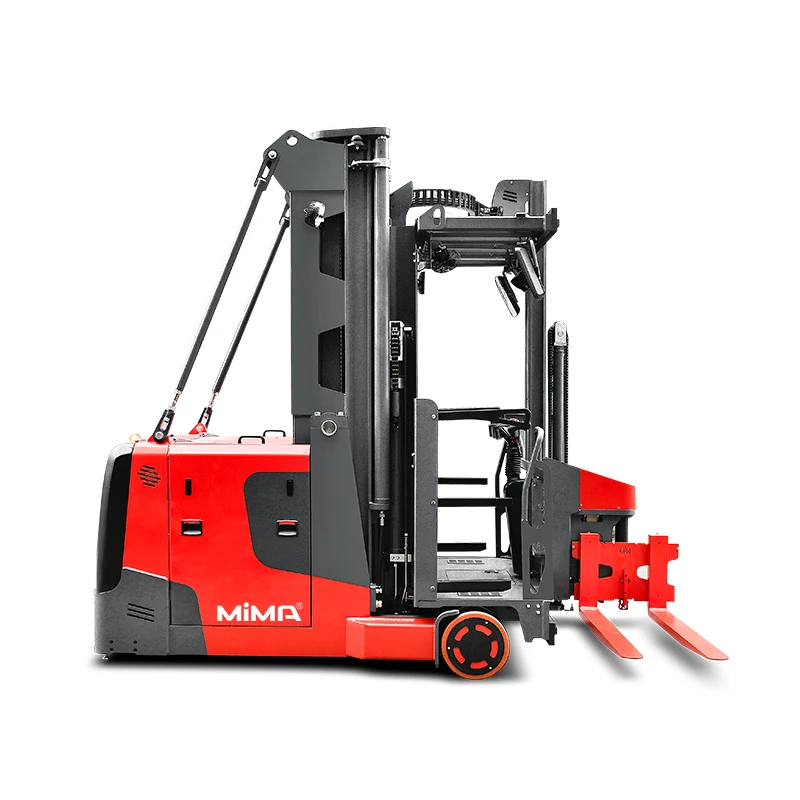

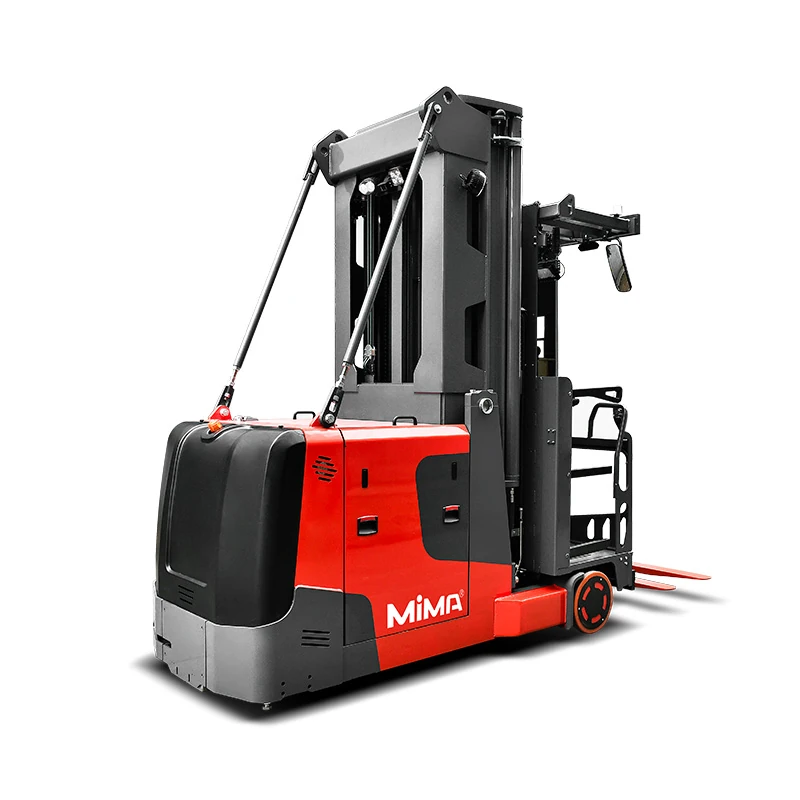

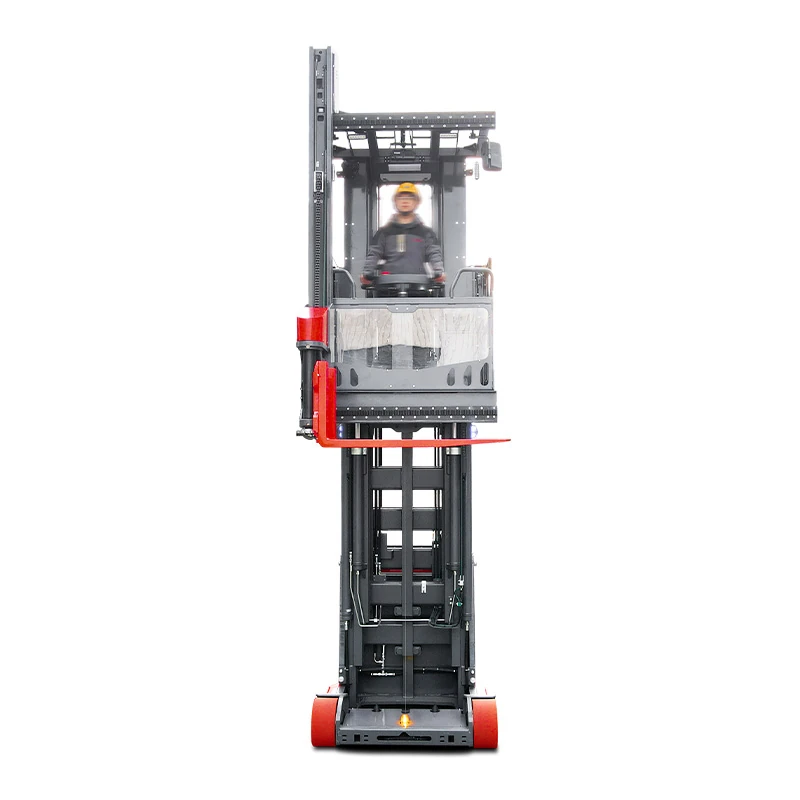

1.6T Man-up Turret Truck Electric 3-way Pallet Stacker MCC16U
The MiMA MCC16U is a 1.6-tonne man-up electric turret truck combining high-level pallet handling with a spacious, configurable operator platform. Standard and long-wheelbase versions reach total lift heights up to 14,500 mm, while electric or electro-hydraulic turret heads, adjustable controls and standing or seated operation support different pallets, aisle layouts and working preferences.
Ideal For
- High-density pallet storage and high-level order picking
- Warehouses handling different pallet sizes or mixed load configurations
- Operations requiring configurable controls, fork heads or operator platforms
Product Features
Product Highlights
Practical features developed for safer, more efficient material handling.

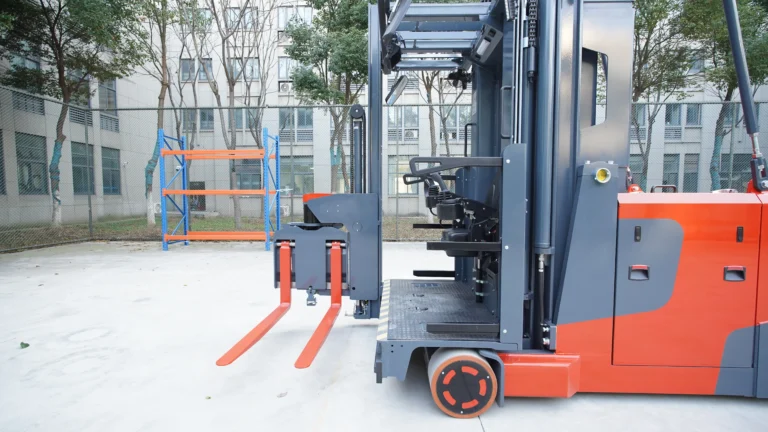

Match the Fork Head
Electric and electro-hydraulic turret options suit different pallets and aisle conditions.

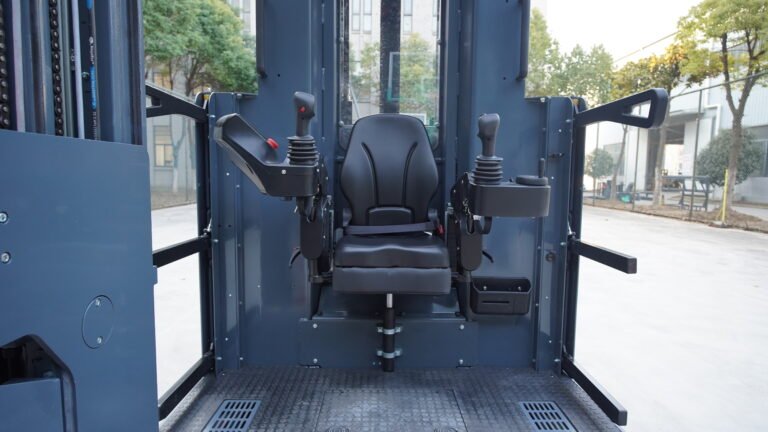

Reach Higher with Control
High-strength mast construction and synchronized functions support productive handling at height.
Product Data
Technical Specifications
Compare the available MCC16U configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | MCC16U |
|---|---|
| Model | MCC16U |
| Operation Type | Seated / Stand-on |
| Load Capacity | 1600kg |
| Lift Height | Up to 14,500 mm total lift height |
| Mast Type | Triplex Full-free |
| Fork Outside Spread | 280–700 mm |
| Aisle Width | From 1,650 mm* |
| Battery Specification | 80 V / 560 Ah; 80 V / 700 Ah |
Product Overview
Product Details
Configurable Operator Platform
The MCC16U offers a spacious operator compartment with adjustable controls and a foldable seat. Semi-enclosed and open platform configurations can be selected according to picking requirements and operator preference.
Electric or Electro-Hydraulic Fork Head
The compact electric turret head provides low-noise, energy-efficient pallet handling. An electro-hydraulic version with a scissor-type mechanism is available for mixed pallet sizes and more complex aisle conditions.
Productive High-Level Handling
The elevating compartment provides a direct view of the pallet and rack location. Synchronized travel and lifting, linked fork rotation and side shift, fork centring and height preselection reduce repeated actions.
Stable and Serviceable
A high-strength mast, full AC power and electromagnetic braking support controlled operation at height. Side-pull battery access and removable service panels simplify routine inspection and battery replacement.
Product Support
Frequently Asked Questions
Find answers to common questions about MCC16U, or contact MiMA Australia for application-specific advice.
Q1: Are MCC16 and MCC16U intended for different regions?
They provide similar capacity, performance and VNA applications. Selection should be based on the operator platform, fork-head configuration, wheelbase, mast requirement and warehouse layout rather than regional naming.
Q2: What is the difference between the electric and electro-hydraulic fork heads?
The electric fork head offers compact, quiet and energy-efficient operation. The electro-hydraulic version provides greater configuration flexibility and can incorporate a scissor-type mechanism for mixed pallet or aisle requirements.
Q3: Does the MCC16U retain 1,600 kg at maximum height?
No. At a 600 mm load centre, the long-wheelbase versions retain approximately 800 kg at a 14,500 mm total lift height. Residual capacity varies with the fork head, load centre and mast configuration.
Q4: What is the difference between standard- and long-wheelbase models?
Standard-wheelbase models reach total lift heights up to 11,500 mm and use a smaller battery. Long-wheelbase models support total lift heights up to 14,500 mm with increased high-level stability and battery capacity.
Q5: What aisle width is required?
The standard datasheet specifies a 1,650 mm net aisle with a 1,200 × 1,200 mm pallet. The electro-hydraulic fork configuration, larger loads or long-wheelbase chassis may change the final requirement.
Q6: Which aisle guidance systems are available?
Mechanical rail guidance is standard. Electromagnetic and permanent-magnetic guidance are optional, together with aisle safety functions, laser obstacle detection and automatic addressing.
Q7: Can the operator platform be configured?
Yes. Depending on the required configuration, the MCC16U can use semi-enclosed or open platform arrangements, adjustable armrest-mounted controls and a height-adjustable foldable seat.
Q8: What information should be confirmed before ordering?
Confirm the pallet dimensions, load weight and centre, rack height, aisle and main-aisle dimensions, preferred fork head, platform arrangement, wheelbase, guidance method, battery requirement and expected picking frequency.
