Electric Pallet Truck

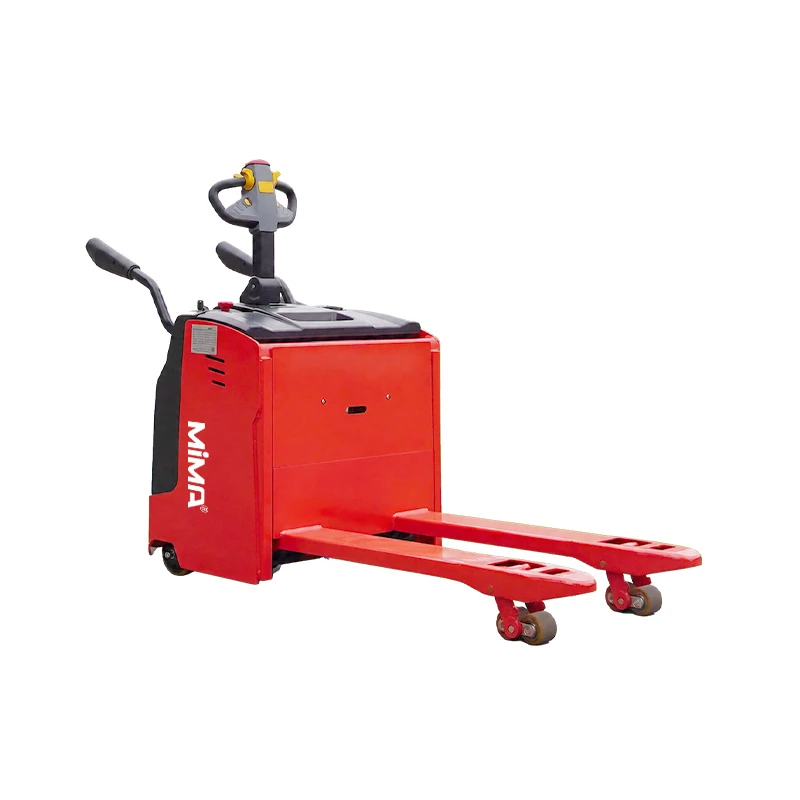

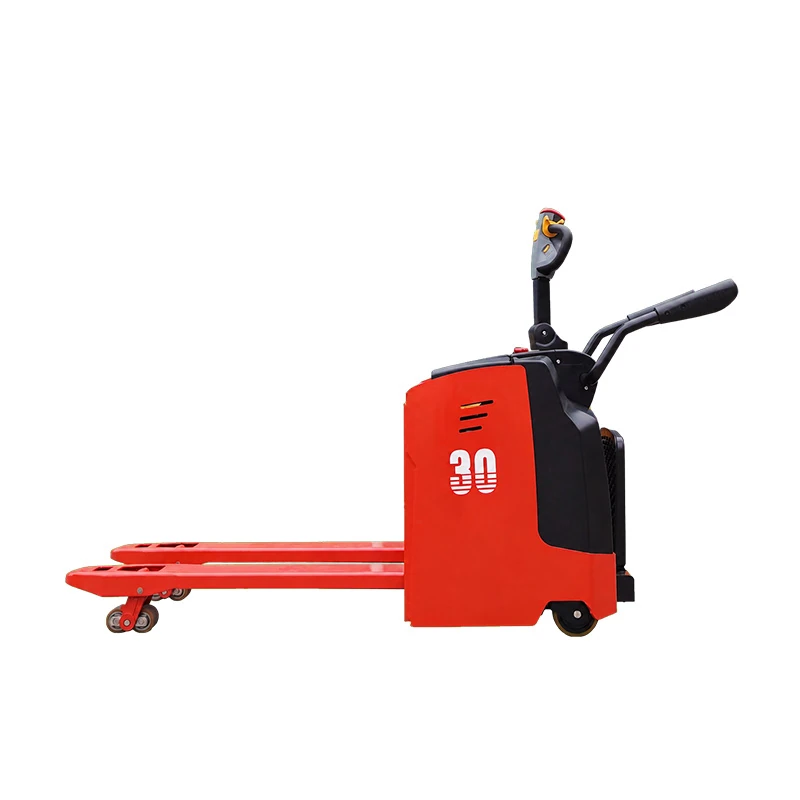

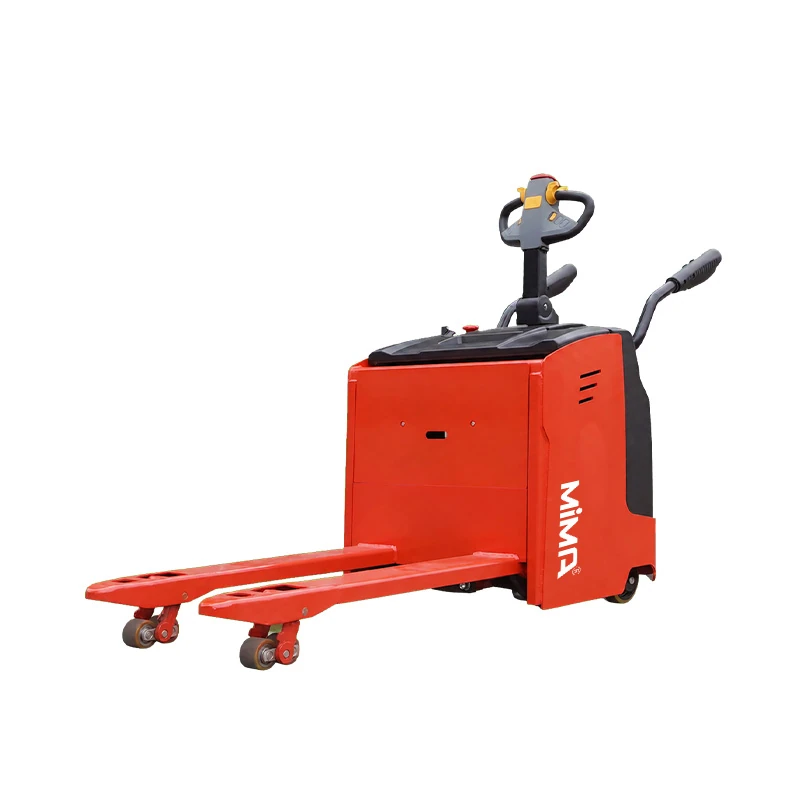

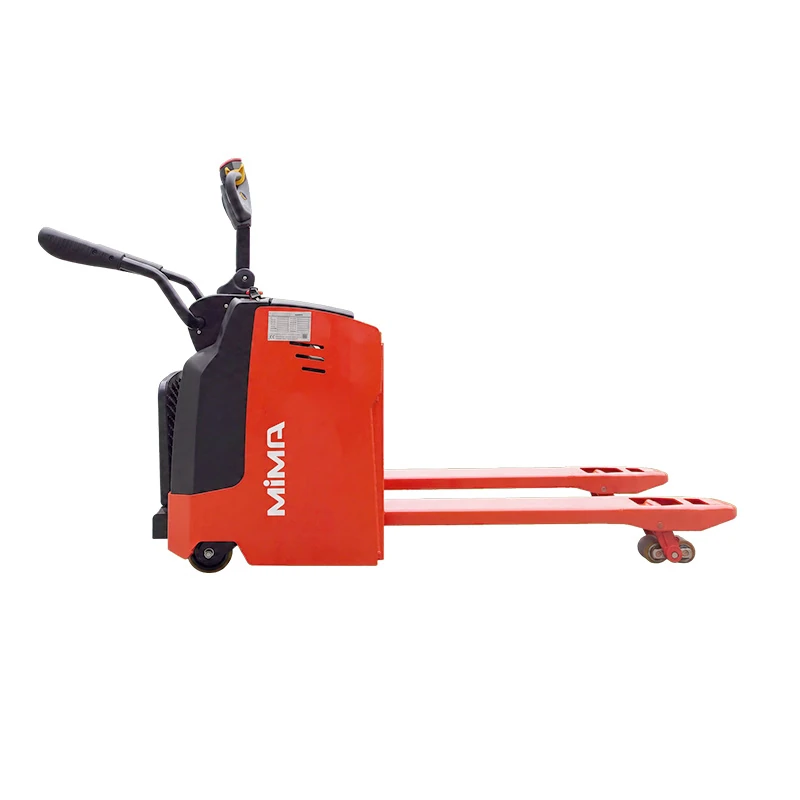

3.0-4.0T Heavy-Duty Stand-on Electric Pallet Truck ME30/40

ME30/40 is a heavy-duty stand-on electric pallet truck range for 3,000 and 4,000 kg loads. Its reinforced structure, floating drive suspension, electric steering and folding side guards support stable pallet movement across medium-distance warehouse routes. AC traction, electromagnetic braking and configurable batteries help maintain controlled performance in logistics, manufacturing and loading-area applications.

Ideal For

  • Heavy pallet movement in warehouses and factories
  • Medium-distance transport between production and storage areas
  • Logistics operations handling loads up to 4,000 kg
View Specifications

Product Data

Technical Specifications

Compare the available ME30 / ME40 configurations, then speak with our team about your capacity, lift height and operating environment.

Specification ME30 ME40
Model ME30 ME40
Operation Type Stand-on Stand-on
Load Capacity 3,000 kg 4,000 kg
Lift Height 195 mm 200 mm
Mast Type N/A – pallet truck N/A – pallet truck
Fork Outside Spread 685 mm 685 mm
Aisle Width 2,150 / 2,590 mm, platform folded/deployed 2,150 / 2,590 mm, platform folded/deployed
Battery Specification 24V/210Ah lead-acid; lithium optional 24V/270Ah lead-acid; lithium optional

Product Overview

Product Details

Heavy-Duty Horizontal Transport

The ME30/40 range extends the standard stand-on pallet-truck format to 3.0- and 4.0-tonne capacities. Reinforced structural components support heavier pallet movement in warehouses, workshops and production facilities.

Folding Platform and Side Guards

The shock-absorbing platform supports medium-distance travel. Folding side guards provide operator containment when deployed, while the folded configuration reduces the truck’s working envelope.

Floating Drive Suspension

The suspension helps keep the drive wheel in contact with the floor, supporting traction during travel and directional changes. The trucks are intended for suitable industrial surfaces.

Electric Steering and AC Traction

Electric steering reduces physical effort during repeated manoeuvring. AC traction, electromagnetic parking braking, emergency reverse and corner-speed control support controlled daily operation.

Application-Matched Batteries

ME30 uses a 24V/210Ah standard battery, while ME40 uses a 24V/270Ah battery. Lithium, side-removal battery and alternative-capacity configurations can be selected according to operating hours and charging arrangements.

Product Support

Frequently Asked Questions

Find answers to common questions about ME30 / ME40, or contact MiMA Australia for application-specific advice.

When should ME40 be selected instead of ME30?
Select ME40 when operational loads exceed 3,000 kg or when additional rated-capacity margin is required. Pallet condition and load distribution must also be checked.
Does deploying the platform change the aisle requirement?
Yes. With a 1,000 × 1,200 mm pallet, the specified aisle width increases from approximately 2,150 to 2,590 mm.
Are ME30 and ME40 suitable for continuous heavy handling?
They are designed for demanding pallet transport, but battery capacity, floor condition, route length and pallet throughput must be matched to the duty cycle.
Can non-standard forks be supplied?
Fork length, width and outside spread can be configured. Any change must be checked against pallet entry, turning radius and rated-load requirements.
Are these trucks intended for outdoor yards?
They are primarily indoor warehouse trucks. Protected outdoor transfers may be possible after reviewing surface condition, water exposure, gradients and wheel specification.
