Dual-Cylinder Lift
Distributes lifting force for smoother and more controlled fork raising under heavy pallets.
Electric Pallet Truck

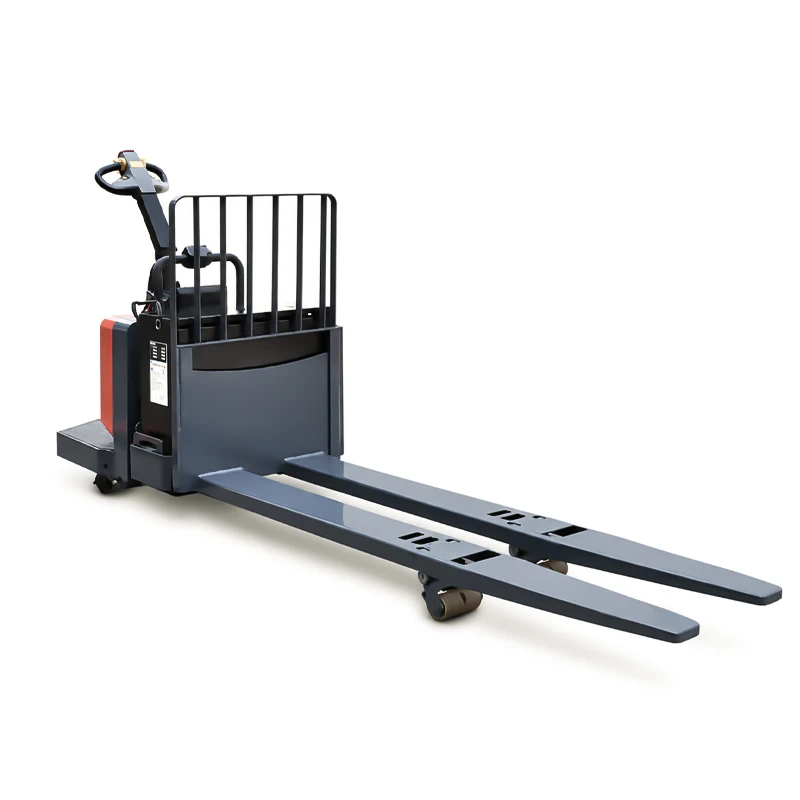

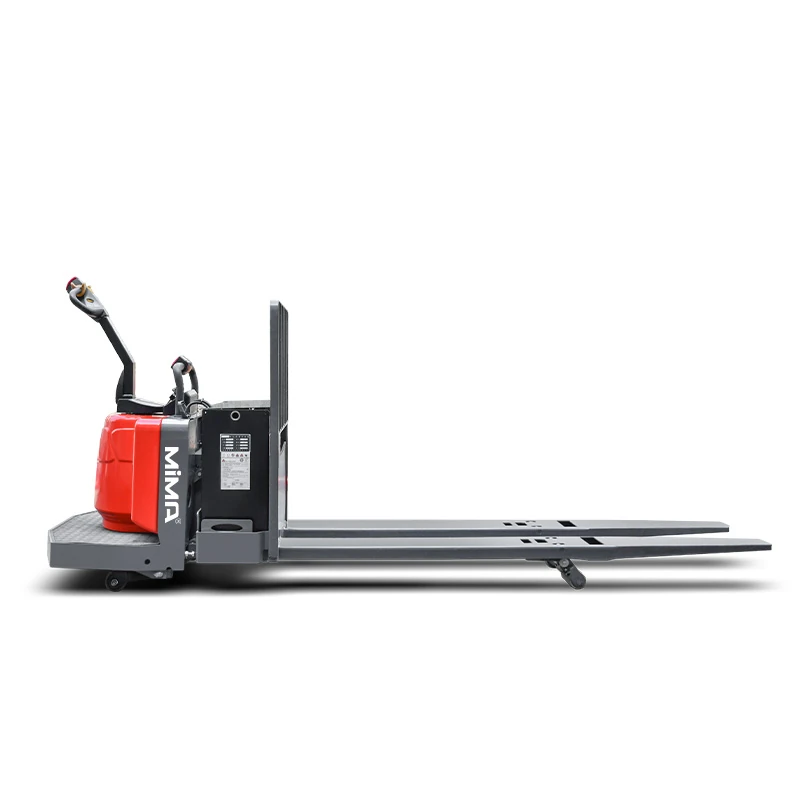

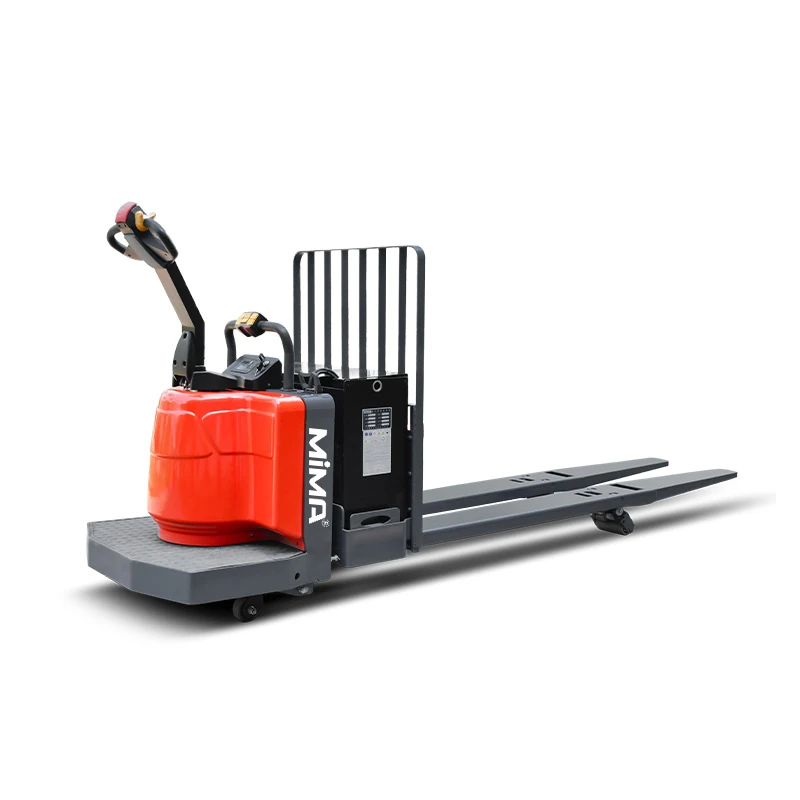

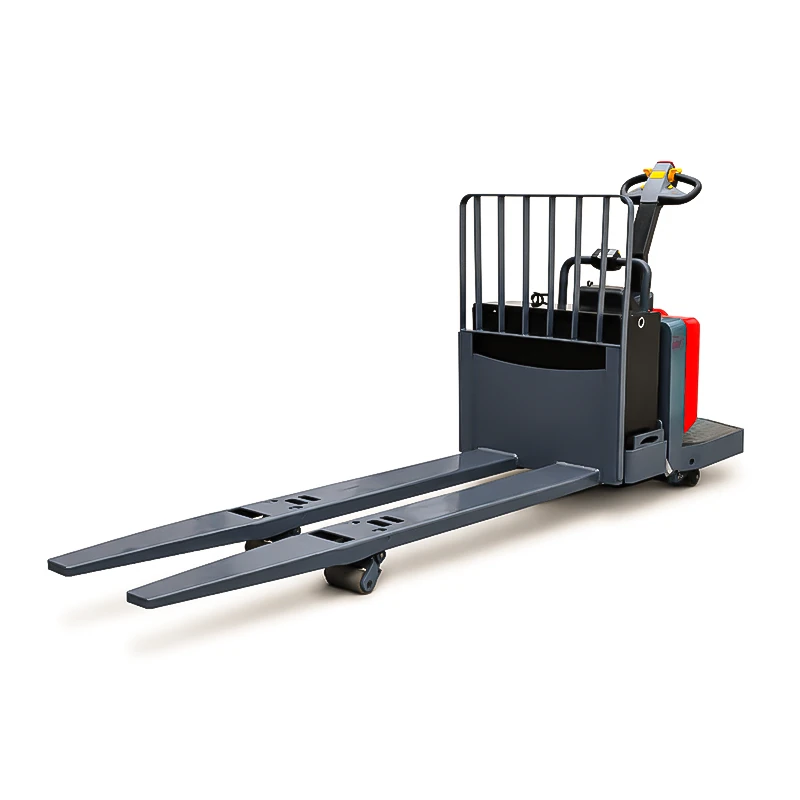

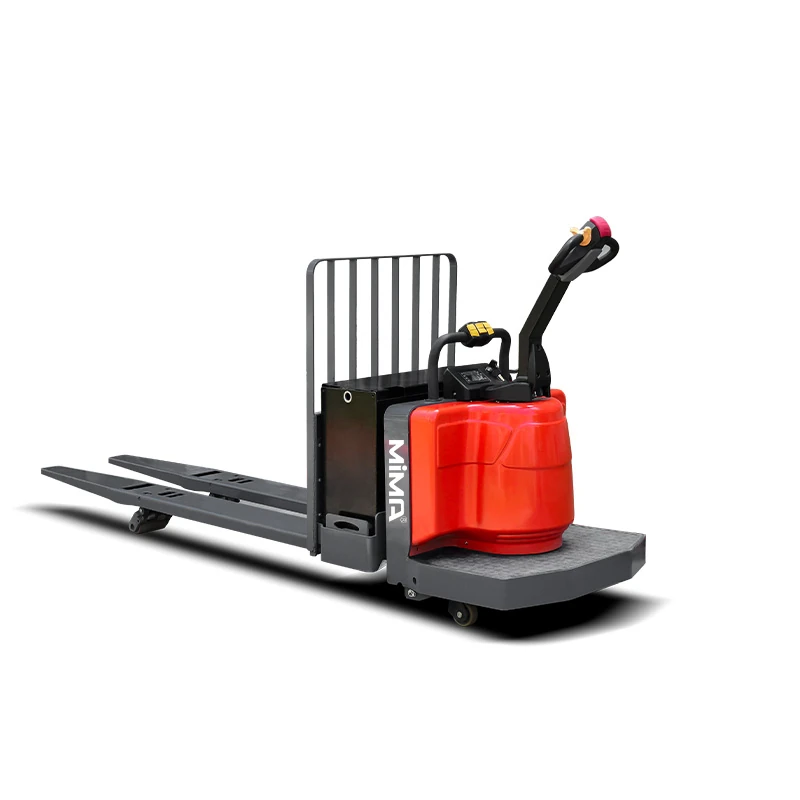

3.6T Stand-on Electric Pallet Truck ME36
ME36 is a 3.6-tonne stand-on electric pallet truck developed for 40 × 48-inch ANSI double-sided pallets and demanding indoor transport. Dual-cylinder lifting, articulated twin caster assemblies, electric steering and AC drive support stable handling over repeated routes, while optional battery capacities and extended forks allow the truck to be configured for longer shifts or double-pallet movement.
Ideal For
- ANSI 40 × 48-inch double-sided pallets
- Heavy pallet transport over medium-distance indoor routes
- Approved single- or double-pallet handling configurations
Product Features
Product Highlights
Practical features developed for safer, more efficient material handling.
MiMA
Articulated Caster Support
Helps maintain chassis stability and smoother travel across suitable indoor floors.
MiMA
Configure for Double Pallets
Extended forks and matching load-wheel configurations support approved double-pallet transport.
Product Data
Technical Specifications
Compare the available ME36 configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | ME36 |
|---|---|
| Model | ME36 |
| Operation Type | Stand-on |
| Load Capacity | 3,600 kg / 8,000 lb |
| Lift Height | 140 mm |
| Mast Type | N/A – pallet truck |
| Fork Outside Spread | 686 mm |
| Aisle Width | 2,935 mm with 40 × 48-inch pallet |
| Battery Specification | 24V/300Ah lead-acid; 24V/200–300Ah lithium optional |
Product Overview
Product Details
Heavy Pallet Transport for ANSI Pallets
The MiMA ME36 electric pallet truck is configured around 40 × 48-inch ANSI double-sided pallets. Its 3.6-tonne rated capacity supports heavy palletised goods in warehouses, production plants and distribution facilities.
Dual-Cylinder Hydraulic Lift
The dual-cylinder lifting system distributes hydraulic force across the load section, supporting smooth lifting and lowering under heavy loads. Forks raise 140 mm for controlled horizontal pallet transport.
Stable Chassis Support
Articulated twin caster assemblies help the truck remain supported as floor conditions change. The chassis and load-wheel configuration must be matched to the pallet opening and intended load.
AC Drive and Electric Steering
The brushless AC drive system supports repeated daily travel with reduced routine motor maintenance. Electric steering lowers steering effort during turning, pallet entry and positioning.
Battery and Fork Configurations
A 24V/300Ah lead-acid battery is standard. Higher-capacity lead-acid and 24V/200–300Ah lithium options are available. Extended forks can be specified for double-pallet handling after load-centre and aisle calculations are confirmed.
Product Support
Frequently Asked Questions
Find answers to common questions about ME36, or contact MiMA Australia for application-specific advice.
What pallets is the ME36 designed to handle?
It is primarily designed for 40 × 48-inch ANSI double-sided pallets. Pallet entry dimensions and load-wheel spacing should be confirmed before ordering.
Can the ME36 carry two pallets at the same time?
An extended-fork configuration is available. The total load, combined load centre, fork length, wheel arrangement and required aisle width must be technically evaluated.
How much aisle width does the ME36 require?
The datasheet specifies approximately 2,935 mm with a 40 × 48-inch pallet. Additional operating clearance should be included in the warehouse layout.
Which battery should be selected?
The 24V/300Ah lead-acid battery suits standard work patterns. Lithium or higher-capacity lead-acid batteries may be preferable for longer shifts or opportunity charging.
Is the ME36 suitable for outdoor use or ramps?
It is primarily intended for smooth, level indoor floors. Any ramp, dock plate or outdoor route must remain within the approved gradient, traction and ground-clearance limits.
