Electric Counterbalance Forklift

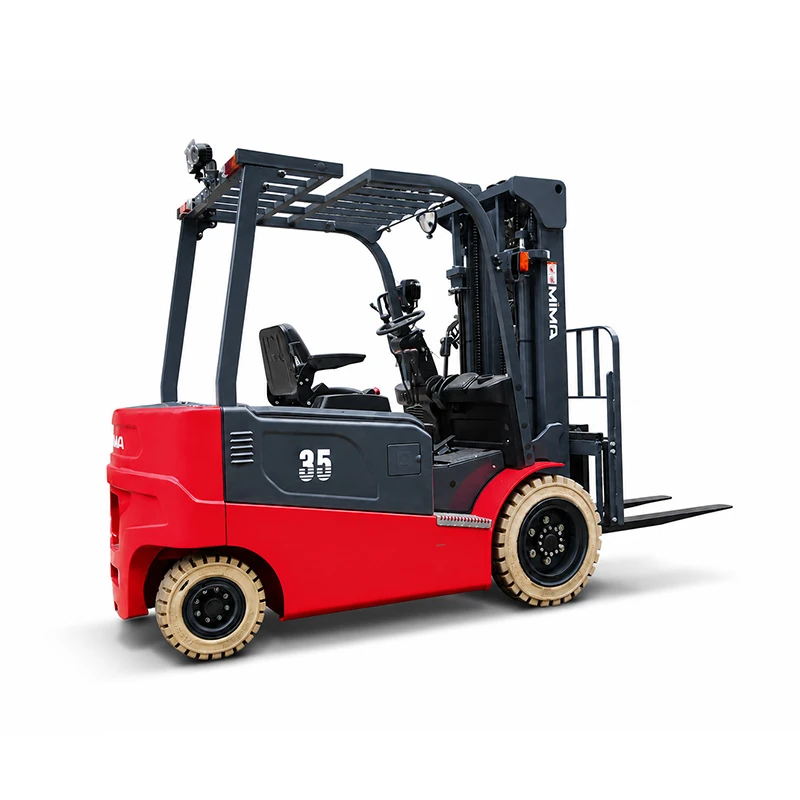

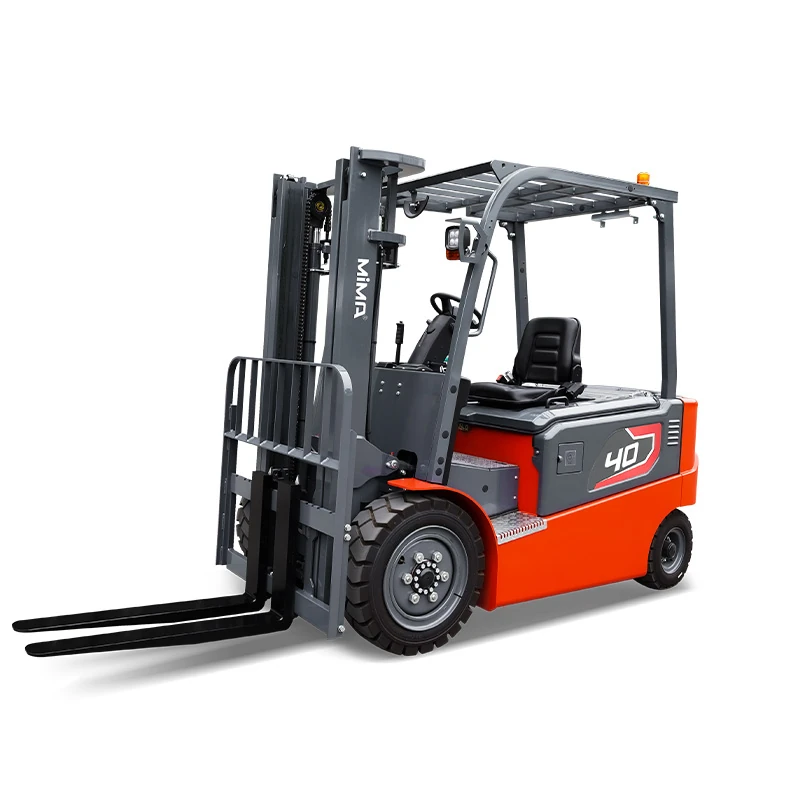

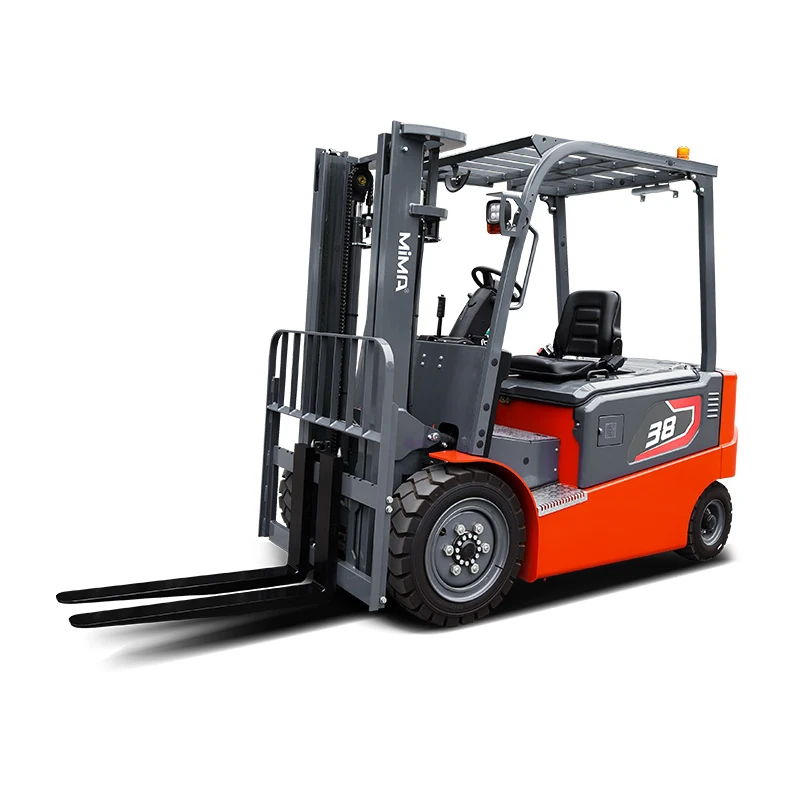

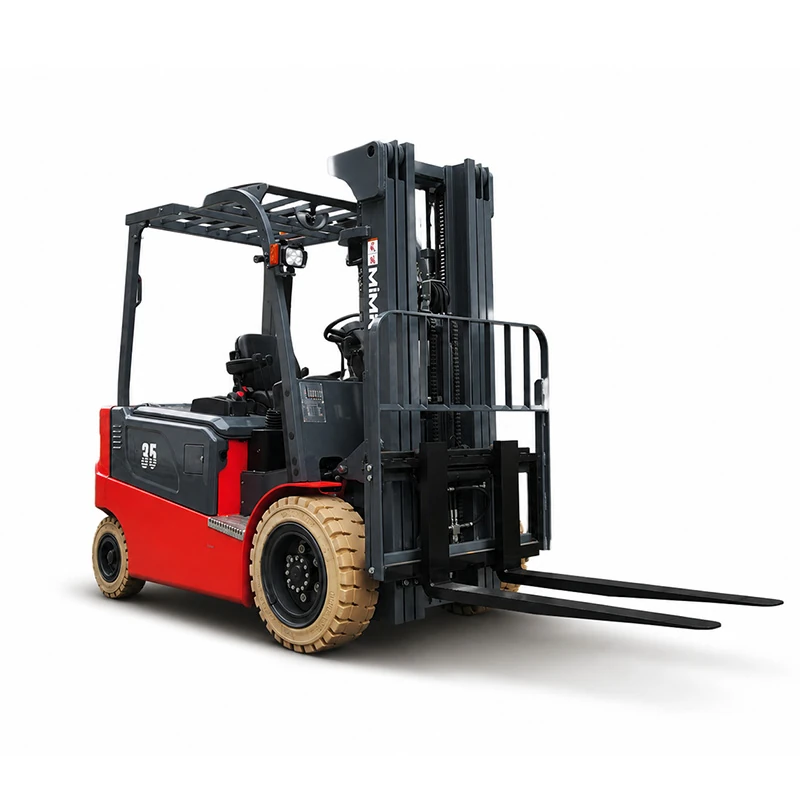

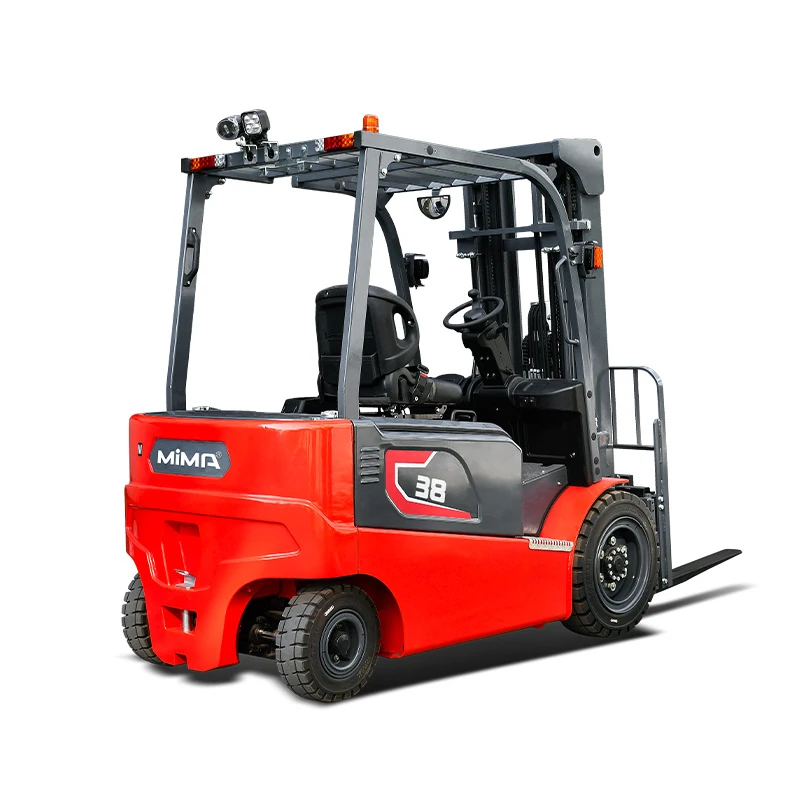

3.5–4.0T Heavy-duty Four-wheel Electric Counterbalance Forklift MK35/40

MK35/40 is a heavy-duty four-wheel electric counterbalance forklift range with 3,500 or 4,000 kg capacity and lift heights up to 7,000 mm. Its low-centre chassis, powerful AC system, hydraulic steering and wide-view mast provide controlled handling, while extensive battery, tyre, cabin and attachment options support demanding industrial and logistics applications.

Ideal For

  • Heavy palletised materials and industrial components
  • Manufacturing plants, loading areas and distribution centres
  • Applications requiring electric power with heavy-duty capability
View Specifications

Product Data

Technical Specifications

Compare the available MK35 / MK40 configurations, then speak with our team about your capacity, lift height and operating environment.

Specification MK35 MK40
Model MK35 MK40
Operation Type Seated Seated
Load Capacity 3500kg 4000kg
Lift Height 2,000–7,000 mm 2,000–7,000 mm
Mast Type Duplex / Duplex Full Free / Triplex Full Free Duplex / Duplex Full Free / Triplex Full Free
Fork Outside Spread 250–1,050 mm 355–1,075 mm
Aisle Width 3889mm 3889mm
Battery Specification 80V/400–500Ah lead-acid; lithium options available 80V/400–500Ah lead-acid; lithium options available

Product Overview

Product Details

Heavy-duty Electric Forklift Platform

The MK35/40 range is developed for heavier manufacturing, logistics and warehouse duties. Capacities of 3,500 and 4,000 kg allow large pallets, production materials and industrial components to be handled electrically.

Low-centre Chassis Stability

The transverse drive arrangement and low battery position help centralise vehicle mass. This supports smooth cornering and controlled load movement during transport and stacking.

Powerful AC Drive System

An 80V full AC system provides the power required for heavier loads, ramps and repeated travel cycles. Regenerative and reverse braking support controlled deceleration and energy efficiency.

Visibility, Comfort and Safety

A wide-view mast supports forward visibility. Adjustable seating, hydraulic steering, OPS monitoring, lift limiting and controlled lowering help protect the operator, load and floor.

Configurable for Industrial Applications

Different tyres, mast heights, batteries, cabins and hydraulic functions are available. Fork positioners, clamps, rotators and other specialised attachments can be integrated after application review.

Product Support

Frequently Asked Questions

Find answers to common questions about MK35 / MK40, or contact MiMA Australia for application-specific advice.

Q1: What is the difference between the MK35 and MK40?
The MK35 is rated at 3,500 kg, while the MK40 is rated at 4,000 kg. Their chassis dimensions are similar, but the required residual capacity and attachment configuration may differ.
Q2: Can these models replace an internal-combustion forklift?
They can replace an IC forklift in many indoor and suitable outdoor applications. Floor condition, gradients, working hours, charging infrastructure and weather exposure must be assessed.
Q3: Is 7,000 mm lift available for every load?
Mast options reach up to 7,000 mm, but rated capacity is not maintained at every height. The relevant load chart must confirm the required load at the target elevation.
Q4: Which tyre type should be used?
Pneumatic tyres provide more cushioning on suitable uneven surfaces. Solid tyres reduce puncture risk and are often selected for industrial yards and intensive applications.
Q5: Can the MK35/40 be customised?
Yes. Available configurations include cabins, cold-storage preparation, different batteries, hydraulic controls, tyre types and load-specific attachments.
