MiMA
Narrow Aisle Storage
Improves pallet capacity without warehouse expansion.
Electric Articulated Forklift

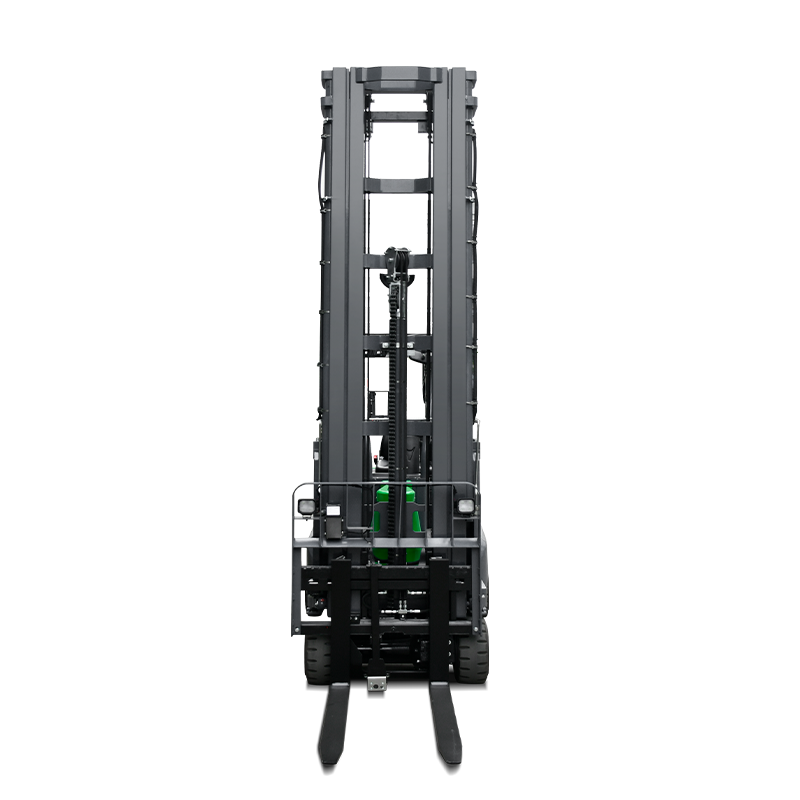

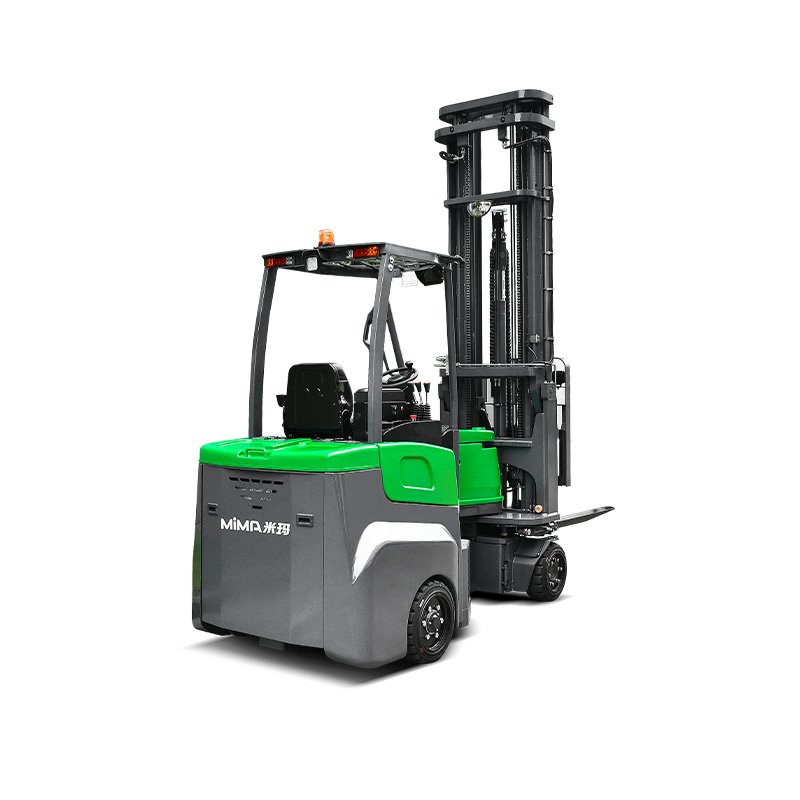

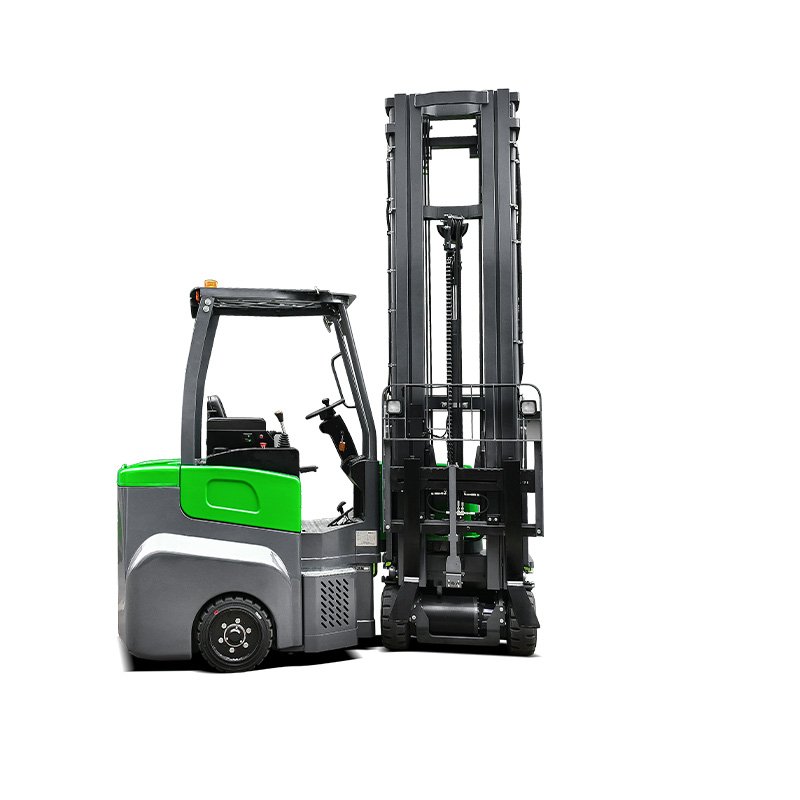

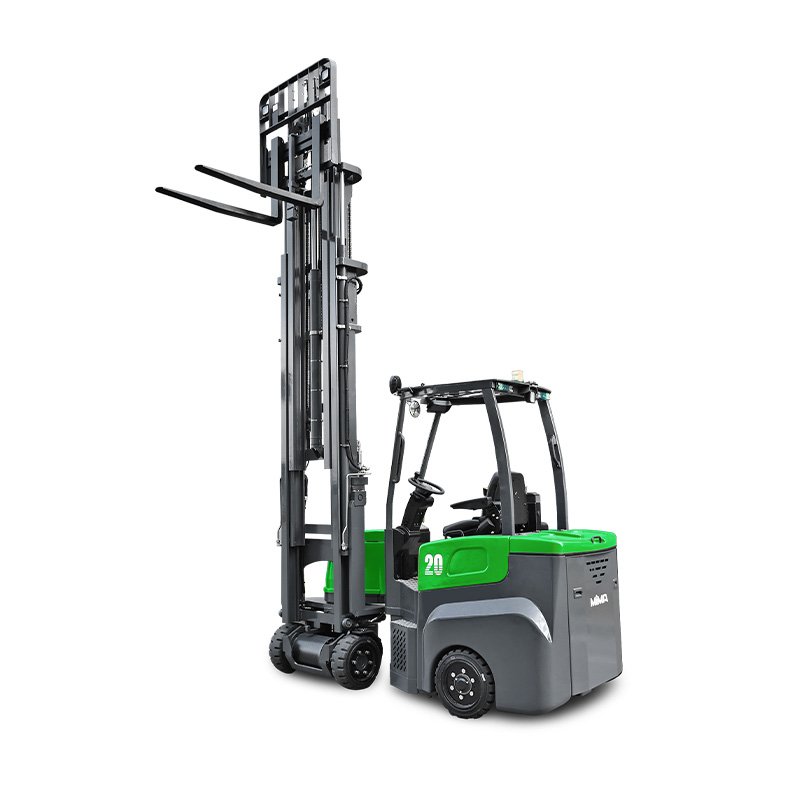

2.0 Ton Electric Articulated Forklift
- Model: MJ20
- Capacity: 2000 kg
- Lift Height: Up to 12500 mm
Description:
The MJ20 electric articulated forklift is designed for narrow aisle pallet storage and indoor-outdoor material transfer. With 2000 kg load capacity, up to 12500 mm lift height, 210° mast swing angle, rubber tyres and seated operation, it helps warehouses increase storage density while keeping one truck for pallet transfer, stacking and racking operations.
Product Features
Product Highlights
Practical features developed for safer, more efficient material handling.
MiMA
210° Mast Swing
Stacks pallets on both sides of the aisle.
MiMA
Indoor-Outdoor Handling
Supports transfer and stacking with one truck.
MiMA
Up to 12.5 m Lift
Suitable for high-rack warehouse storage.
MiMA
Front-Wheel Drive
Designed for efficient narrow aisle pallet handling.
MiMA
AC Electric System
Maintenance-free power for daily warehouse use.
Product Data
Technical Specifications
Compare the available MJ20 configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | MJ20 |
|---|---|
| Model | MJ20 |
| Operation Type | Seated |
| Load Capacity | 2000kg |
| Lift Height | up to 12500 mm |
| Mast Type | duplex mast |
| Fork Outside Spread | 250–890 mm |
| Aisle Width | >1900 mm |
| Battery Specification | Lead-acid: 48V / 900Ah or 80V / 500Ah; Lithium: 48V / 600Ah or 80V / 460Ah |
Product Overview
Product Details
Designed for Warehouses That Need More Pallet Positions
- The MJ20 is suitable for customers who want to increase pallet storage capacity without expanding warehouse floor space.
- The articulated mast allows the truck to stack pallets in narrower aisles than a conventional counterbalance forklift.
- This makes it a strong option for warehouses where aisle width, storage density and pallet throughput are key selection factors.
One Truck for Transfer and Storage
- The MJ20 can support both indoor racking work and outdoor paved transfer operations.
- Customers can move pallets from loading areas, staging zones or production areas directly into narrow aisle storage.
- This helps reduce the need for separate transfer trucks and aisle-only equipment in suitable warehouse layouts.
High Lift for Dense Racking Layouts
- With lift height options up to 12500 mm, the MJ20 can support high-rack storage applications.
- The wide body version is suitable for customers who need higher lift capacity and taller racking layouts.
- This gives the model a clear role in projects where both narrow aisle operation and vertical storage use are important.
Smooth Operation in Narrow Aisles
- The 210° mast swing angle helps the truck position pallets on both sides of the aisle with less manoeuvring.
- Operators can reduce reverse driving and repeated steering movements in narrow spaces.
- This supports better handling efficiency and easier daily operation in high-density warehouses.
Practical Electric Performance
- AC motor technology, Curtis controller options and MOSFET control help support smooth travel, lifting and steering performance.
- Regenerative braking, anti-rollback and controlled speed functions help improve energy efficiency and safety.
- Customers benefit from lower maintenance requirements compared with internal combustion forklifts.
Operator Comfort and Visibility
- Adjustable steering wheel, adjustable seat and ergonomic control layout help reduce fatigue during daily operation.
- Wide-view mast design, LED lighting, OPS operator presence monitoring and laser reference lights support safer work in narrow aisles.
- These features help operators work more confidently in both transfer and high-rack storage applications.
Product Support
Frequently Asked Questions
Find answers to common questions about MJ20, or contact MiMA Australia for application-specific advice.
What is the MJ20 electric articulated forklift used for?
The MJ20 is used for narrow aisle pallet storage, indoor-outdoor pallet transfer and high-density warehouse applications.
What is the load capacity of the MJ20?
The MJ20 has a rated load capacity of 2000 kg.
What is the maximum lift height?
The MJ20 narrow body supports lift heights up to 10000 mm, while the wide body version can support lift heights up to 12500 mm.
What aisle width does the MJ20 require?
For an 800×1200 mm pallet, the MJ20 narrow body can work from around 1900 mm, while the wide body version can work from around 2100 mm. Final aisle width should be confirmed based on pallet size and racking layout.
Can the MJ20 be used outdoors?
Yes. The MJ20 is equipped with rubber tyres and can support indoor and outdoor transfer on suitable paved surfaces.
What is the difference between MJ20 narrow body and wide body?
The narrow body version is better for tighter aisle layouts, while the wide body version supports higher lift configurations up to 12500 mm.
