MiMA
3.0 Ton Capacity
Handles heavier palletised warehouse loads.
Electric Articulated Forklift

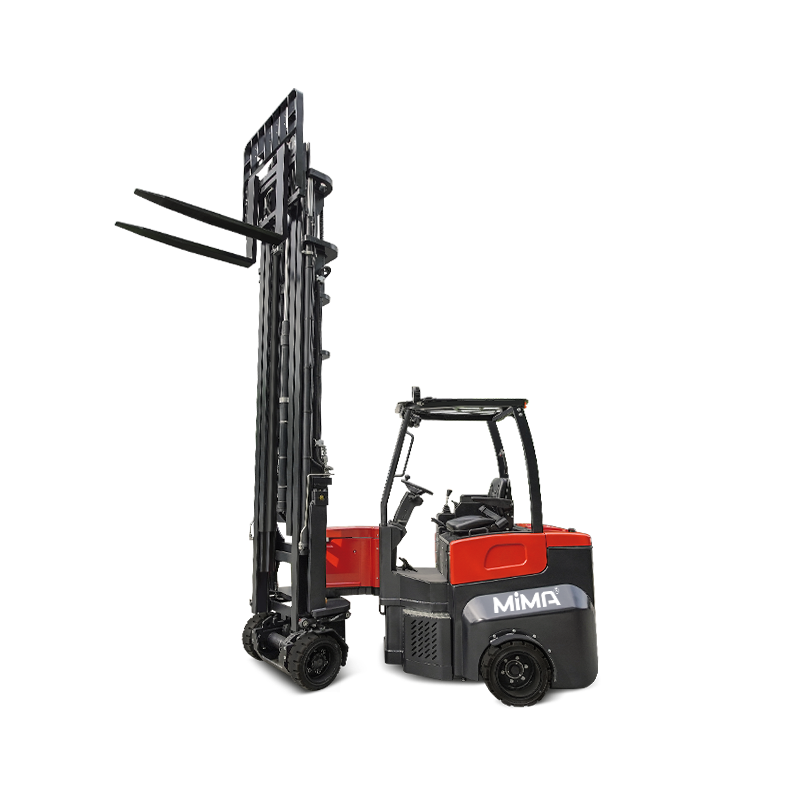

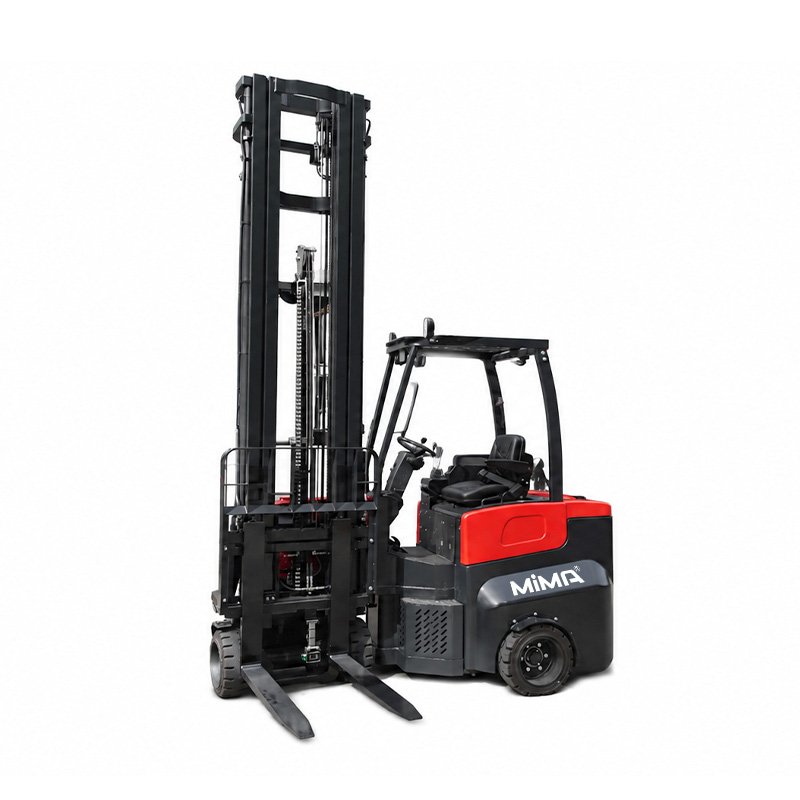

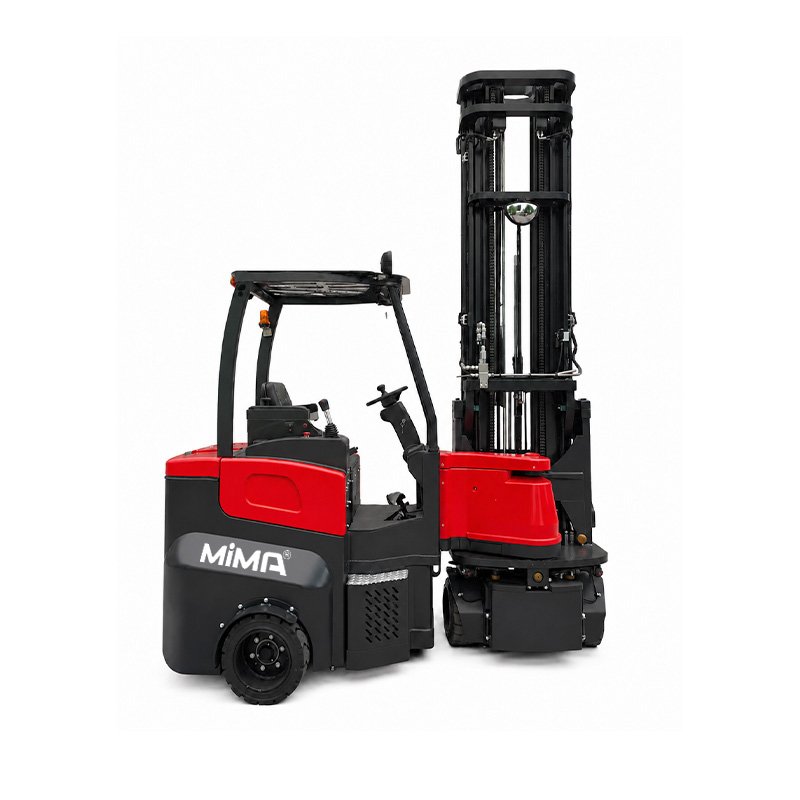

3.0 Ton Electric Articulated Forklift
- Model: MJD25
- Capacity: 2500 kg
- Lift Height: Up to 8000 mm
Description:
The MJD25 electric articulated forklift is designed for narrow aisle high-density storage and indoor-outdoor transfer applications where compact structure, strong traction and high-lift flexibility are required. With 2500 kg capacity, rear dual-drive motors, quadruplex full-free mast, 180° mast swing angle and standard lithium battery, it provides a specialised solution for customers who need both compact operation and reliable pallet handling performance.
Product Features
Product Highlights
Practical features developed for safer, more efficient material handling.
MiMA
210° Mast Swing
Reduces aisle space for pallet stacking.
MiMA
Wide Body Structure
Supports higher capacity narrow aisle handling.
MiMA
Indoor-Outdoor Transfer
Moves goods from dock to storage.
MiMA
AC Drive System
Efficient electric power with lower maintenance.
MiMA
Operator Visibility
Wide-view mast supports safer pallet handling.
Product Data
Technical Specifications
Compare the available MJ30 configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | MJ30 |
|---|---|
| Model | MJ30 |
| Operation Type | Seated |
| Load Capacity | 3000 kg |
| Lift Height | Up to 8000 mm |
| Mast Type | triple mast |
| Fork Outside Spread | 380–890 mm |
| Aisle Width | > 2300 mm with 800×1200 mm pallet |
| Battery Specification | Lead-acid: 80V / 500Ah; Lithium: 80V / 460Ah |
Product Overview
Product Details
Higher Capacity for Narrow Aisle Pallet Storage
- The MJ30 is suitable for customers who need 3000 kg load capacity but still want to improve warehouse storage density.
- Its articulated mast helps reduce aisle width compared with conventional counterbalance forklifts.
- This makes it a strong fit for medium-duty warehouse projects where standard forklifts cannot meet aisle requirements.
One-Truck Workflow from Dock to Rack
- The MJ30 can support pallet transfer, staging, production movement and racking work in one operating flow.
- Rubber tyres allow the truck to work on suitable indoor and outdoor paved surfaces.
- Customers can reduce handling steps when pallets need to move from loading areas directly into storage aisles.
Stronger Handling for Medium-Duty Applications
- With 3000 kg load capacity and a wide body structure, the MJ30 is better suited for heavier palletised goods.
- It supports industries with larger pallet weights, production materials or higher handling intensity.
- This gives the model a clear position where MJ20 capacity is not enough but full VNA turret truck operation is not required.
Efficient Electric Control and Energy Recovery
- AC drive and lift systems support responsive and smooth operation during travel, lifting and steering.
- Regenerative braking helps recover energy during deceleration and downhill travel.
- Anti-rollback, controlled braking and precise controller response help improve safety and efficiency.
Safe and Comfortable Daily Operation
- Adjustable steering wheel, adjustable seat and ergonomic cab layout support operator comfort during long shifts.
- Wide-view mast, LED lighting, OPS monitoring, lowering speed control and lowering buffer help protect the operator, load and working environment.
- These details are important for customers who use articulated forklifts as daily production and warehouse handling equipment.
Configurable for Warehouse Conditions
- Optional configurations may include fork positioner, weighing system, thumb control, non-marking tyres, solid tyres and suspension seat.
- These options help match the truck to pallet type, operating surface, application intensity and operator preference.
- The MJ30 can be positioned as a flexible 3.0 ton articulated forklift for practical warehouse optimisation projects.
Product Support
Frequently Asked Questions
Find answers to common questions about MJ30, or contact MiMA Australia for application-specific advice.
What is the MJ30 electric articulated forklift used for?
The MJ30 is used for 3.0 ton pallet handling in narrow aisle warehouses, indoor-outdoor transfer and high-density storage applications.
What is the load capacity of the MJ30?
The MJ30 has a rated load capacity of 3000 kg.
What is the maximum lift height?
The MJ30 can support lift heights up to 8000 mm.
What aisle width does the MJ30 require?
For an 800×1200 mm pallet, the MJ30 can work from around 2300 mm. Final aisle width should be confirmed according to pallet size, racking layout and operating clearance.
Can the MJ30 replace a standard counterbalance forklift?
In suitable warehouse layouts, the MJ30 can replace a standard counterbalance forklift for pallet transfer and narrow aisle stacking, while using less aisle space.
Can the MJ30 operate outdoors?
Yes. It can be used for indoor and outdoor transfer on suitable paved surfaces such as warehouse floors, concrete and asphalt.
