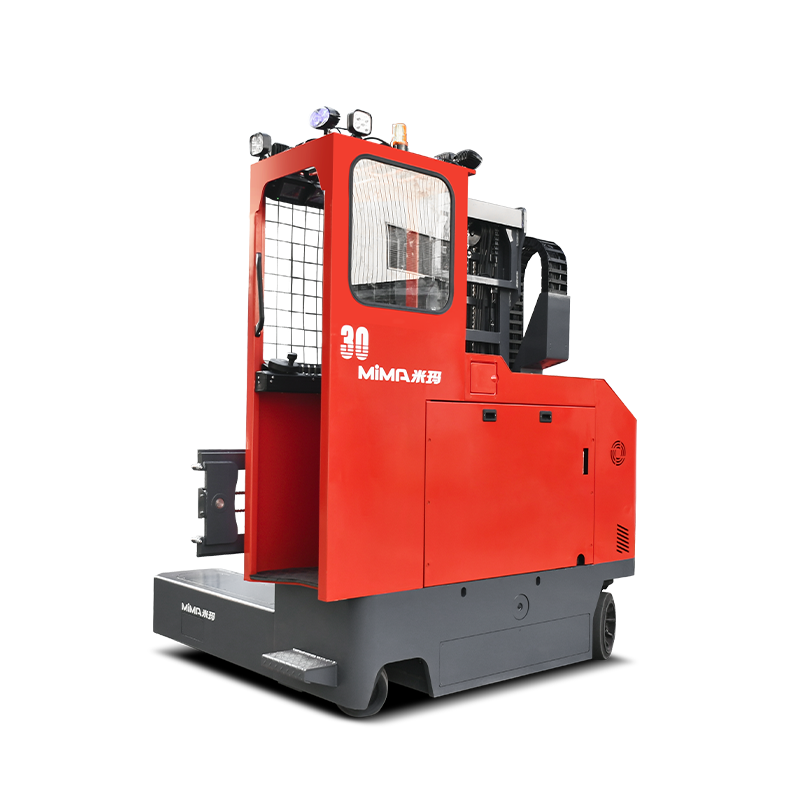

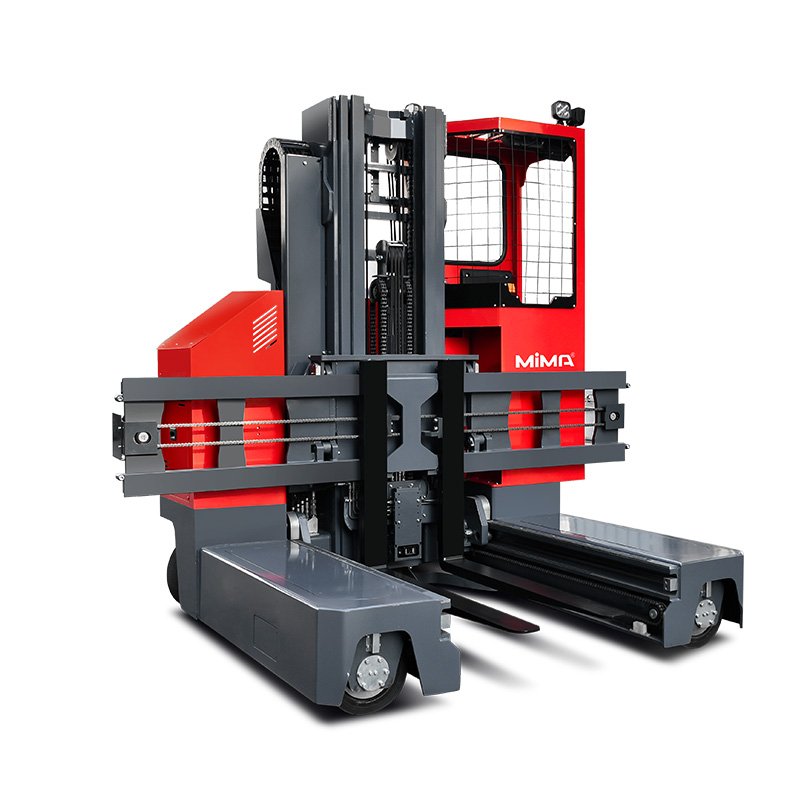

3.0 Ton Stand-On Multi-Directional Forklift
MQ30 stand-on multidirectional forklift
3.0 Ton Stand-On Multi-Directional Forklift
3.0 Ton Stand-On Multi-Directional Forklift
3.0 Ton Stand-On Multi-Directional Forklift
Multi directional Forklift

3.0 Ton Stand-On Multi-Directional Forklift

Description

The MQ30 stand-on multi-directional forklift is designed for narrow aisle long-material handling where fast access, flexible travel and compact operation are required. With 3000 kg capacity, stand-on operation, four-wheel steering, wide fork adjustment and multi-directional travel, it gives customers a practical solution for frequent long-load movement.

Model Capacity Lift Height
MQB30 3000kg Up to 8000 mm

Product Highlights

Stand-On Operation

Stand-On Operation

Designed for frequent access and quick handling.

3.0 Ton Capacity

3.0 Ton Capacity

Handles medium-duty long materials.

Multi-Directional Travel

Multi-Directional Travel

Straight, sideways, diagonal and rotation modes.

Four-Wheel Steering

Four-Wheel Steering

Improves flexibility in narrow areas.

All-Wheel Braking

All-Wheel Braking

Improves braking on slippery surfaces.

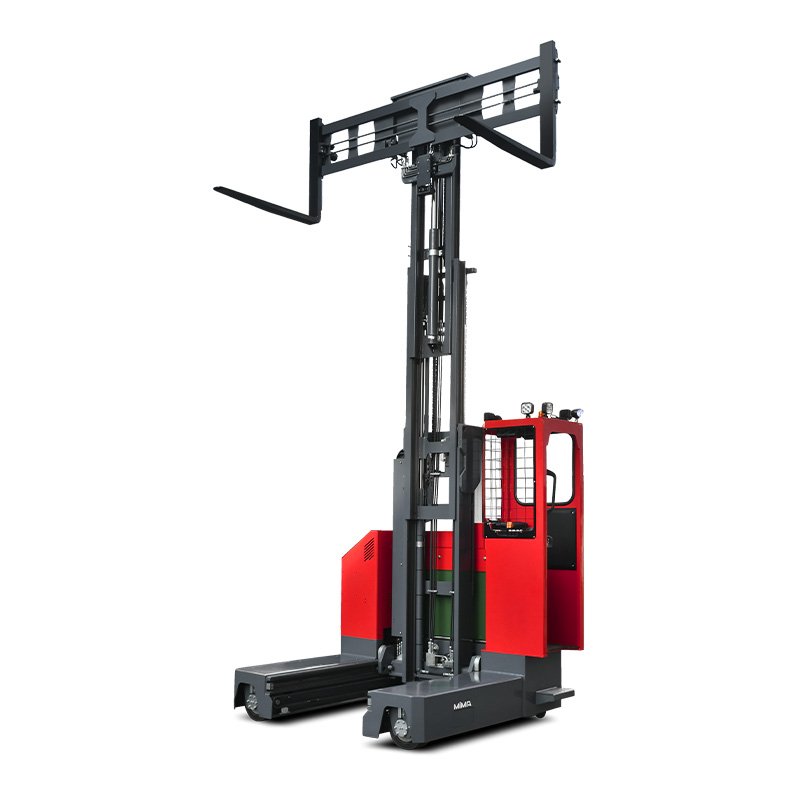

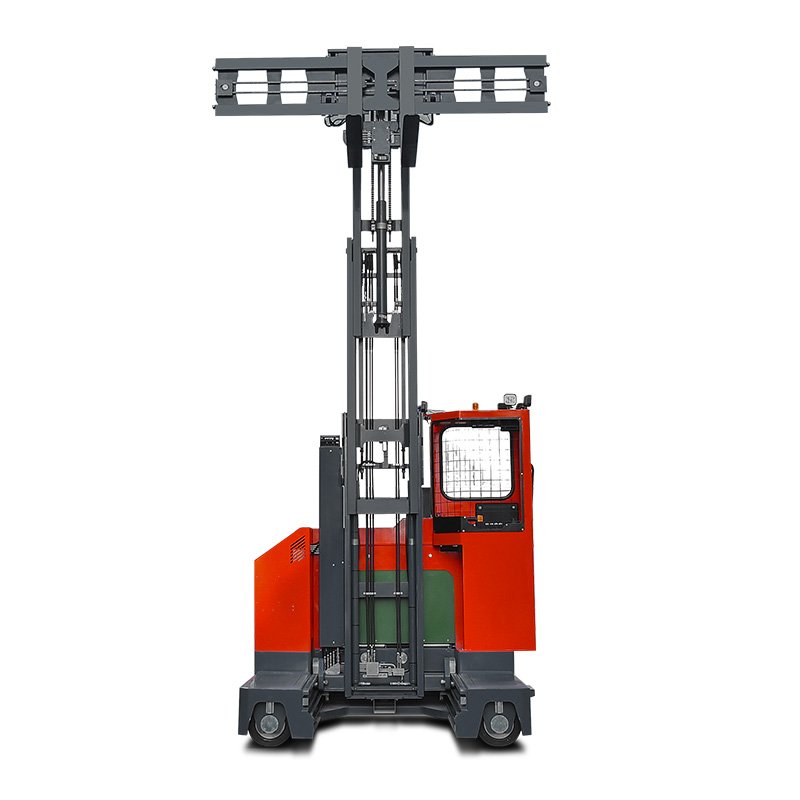

High-Lift Mast

High-Lift Mast

Supports stacking up to 8000 mm.

Specification MQB30
Model MQB30
Operation Type Stand-on
Load Capacity 3000kg
Lift Height Up to 8000 mm
Mast Type
Fork Outside Spread 2860 mm
Aisle Width > 2500 mm
Battery Specification Lithium: 48V / 460Ah
Download Full Datasheet

Product Details

For Frequent Long-Load Movement

  • Designed for customers who frequently move long materials in narrow aisles or compact warehouse areas.
  • The stand-on structure supports quick access during repeated loading, transfer and stacking tasks.
  • Dealers can position the MQ30 as a compact, efficient option for customers needing faster long-load handling.

Compact Operation in Narrow Aisles

  • Multi-directional travel allows the truck to move straight, sideways, diagonally and rotate in place.
  • This helps long materials move through narrow aisles without requiring large turning areas.
  • Customers benefit from better space utilisation and smoother material flow.

Stand-On Design for Faster Workflow

  • Stand-on operation is useful where operators frequently enter and exit the truck.
  • It can improve efficiency in high-turnover storage and production logistics environments.
  • This makes the MQ30 suitable for warehouses that prioritise speed, access and compact movement.

Flexible Steering and Braking Control

  • Four-wheel steering improves manoeuvrability in restricted working areas.
  • All-wheel braking improves stopping performance on demanding or slippery surfaces.
  • These features help customers improve control and safety during long-load movement.

Useful Complement for Dealer Portfolios

  • The MQ30 gives dealers a stand-on multi-directional model for customers who do not need a larger seated unit.
  • It is suitable for narrow aisle long-material applications where compact operation is important.
  • This helps dealers cover more customer scenarios within the long-material handling market.
What is the capacity of the MQ30?
The MQ30 has a rated load capacity of 3000 kg.
What type of operation does the MQ30 use?
It uses stand-on operation, which is suitable for frequent access and high-turnover handling tasks.
Is the MQ30 suitable for long materials?
Yes. It is designed for long-material handling in narrow aisle environments.
What is the maximum lift height?
The MQ30 supports lift heights up to 8000 mm.
What battery does the MQ30 use?
The MQ30 uses a 48V / 460Ah lithium battery.
Can I request the full technical data sheet?
Yes. Contact MiMA to receive the full technical specification.
