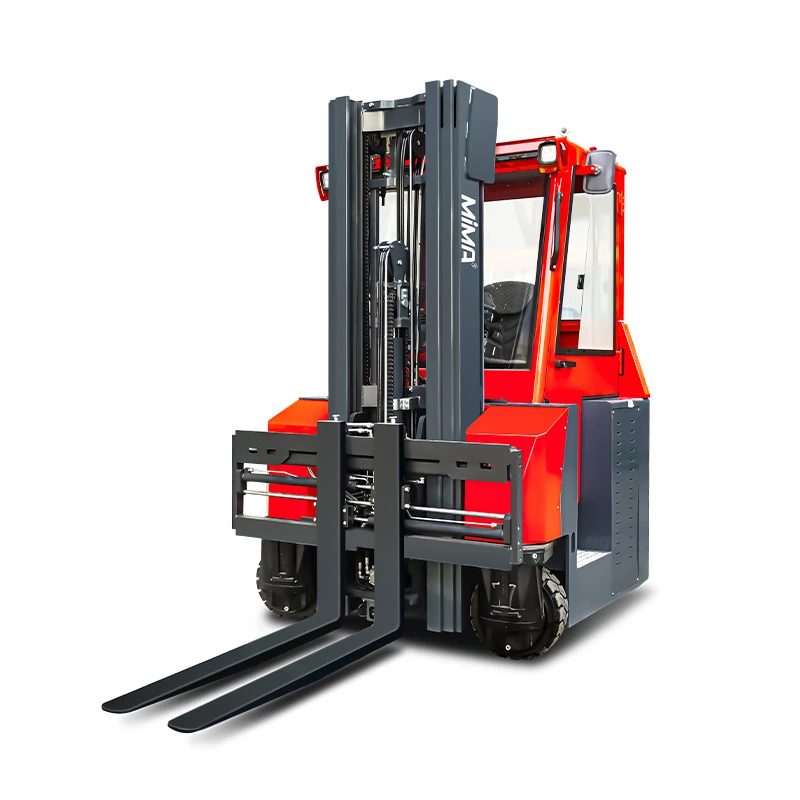

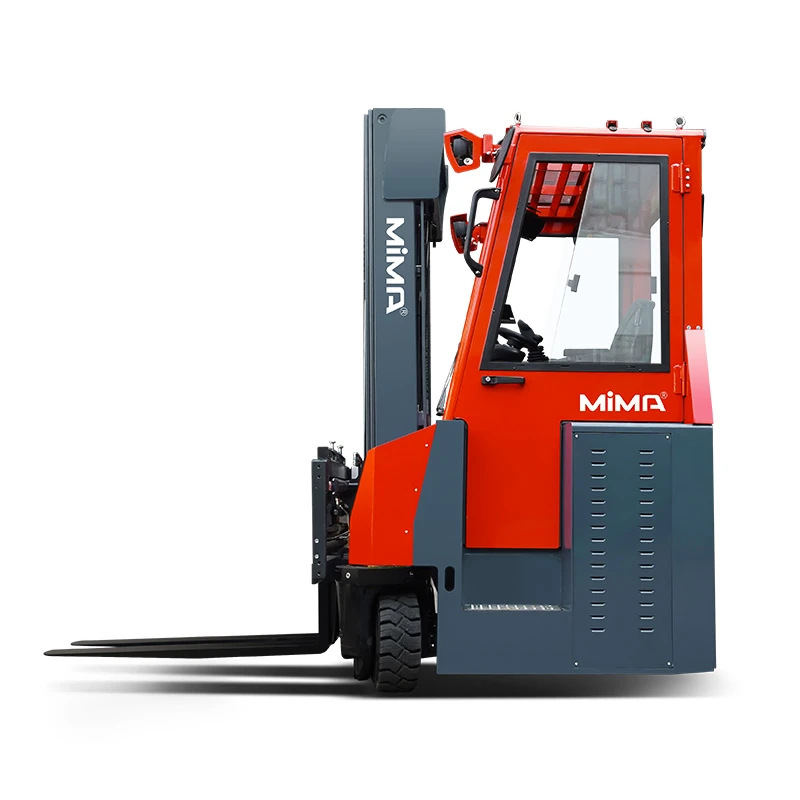

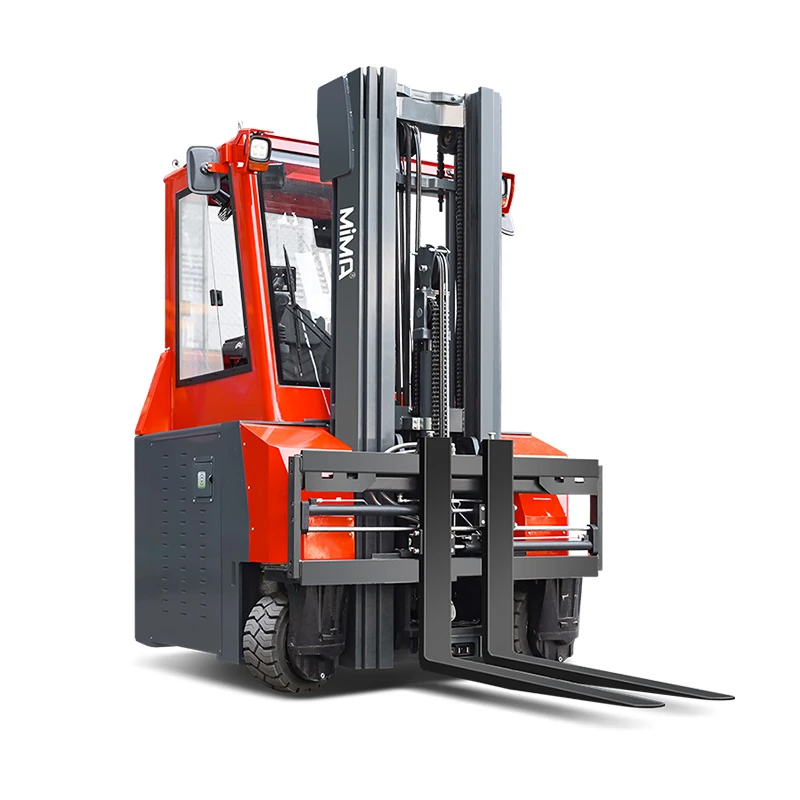

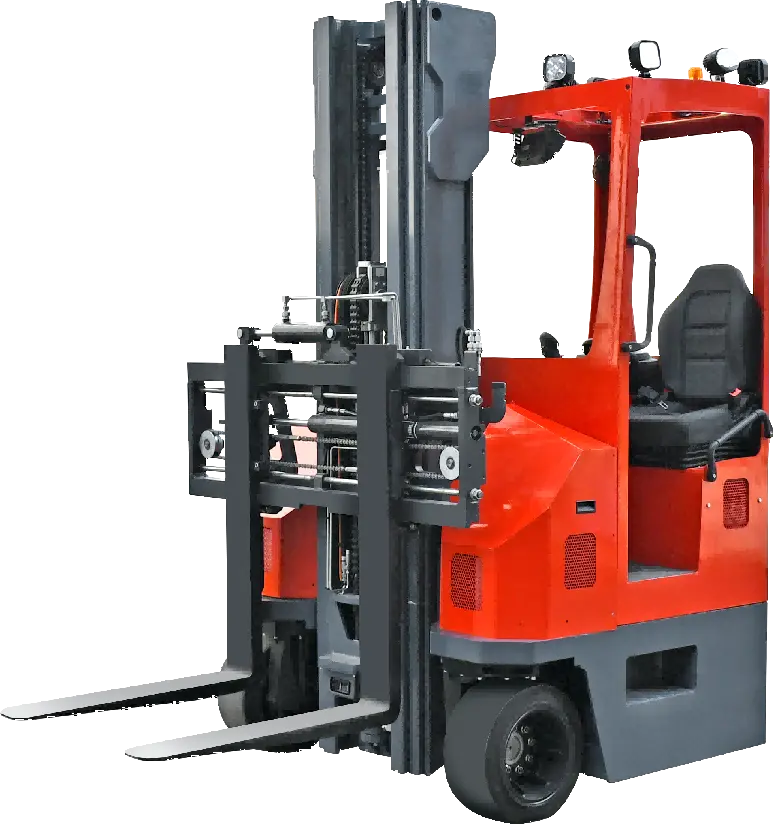

The MQK30 Side Seat multi-directional counterbalance forklift is designed for long-material handling, narrow aisle stacking and outdoor yard applications. With a compact counterbalance body, side seat operation, multi-directional travel and fork adjustment functions, it gives customers a proven solution for long loads and mixed material handling.
| Model | Capacity | Lift Height |
|---|---|---|
| MQK30 Side Seat | 3000kg | Up to 8000 mm |
Practical layout for long-material handling.
Compact body without long support legs.
Straight, sideways, diagonal and rotation modes.
Improves flexibility for different load widths.
Supports efficient direction changes.
Improves operator safety during operation.
| Specification | MQK30 Side Seat |
|---|---|
| Model | MQK30 Side Seat |
| Operation Type | Seated |
| Load Capacity | 3000kg |
| Lift Height | Up to 8000 mm |
| Mast Type | — |
| Fork Outside Spread | 350–1450 mm |
| Aisle Width | > 2900 mm |
| Battery Specification | Lead-acid: 48V / 880Ah; Lithium: 48V / 600Ah |
