Multi directional Forklift

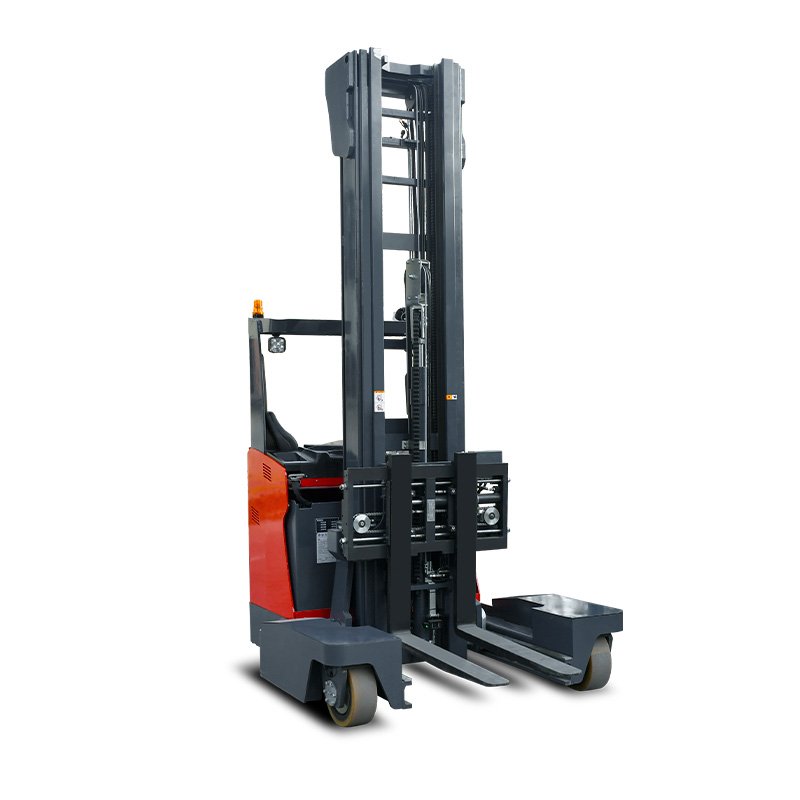

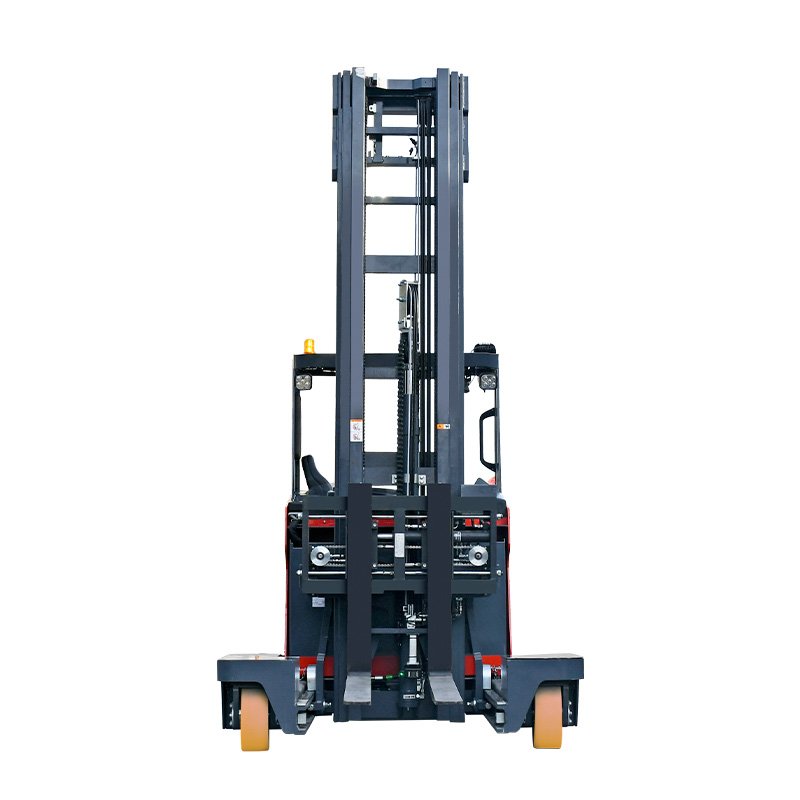

2.5–3.0 Ton Seated Multi-Directional Reach Truck
Model: MQZ25 / MQZ30
Capacity: 2500–3000 kg
Lift Height: Up to 10500 mm
The MQZ25 / MQZ30 seated multi-directional reach truck combines reach function with multi-directional travel for narrow aisle long-material storage. With up to 10500 mm lift height, fast travel mode switching, three speed modes and load-sensing hydraulics, it gives dealers and end users a strong solution for high-rack long-material storage.
Product Data
Technical Specifications
Compare the available MQZ25 / MQZ30 configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | MQZ25 | MQZ30 |
|---|---|---|
| Model | MQZ25 | MQZ30 |
| Operation Type | Seated | Seated |
| Load Capacity | 2500kg | 3000kg |
| Lift Height | Up to 10500 mm | Up to 10500 mm |
| Mast Type | Triplex Full Free Mast | Triplex Full Free Mast |
| Fork Outside Spread | 400–2240 mm | 400–2240 mm |
| Aisle Width | > 3013 mm | > 3013 mm |
| Battery Specification | Lead-acid: 48V / 700Ah; Lithium: 48V / 460Ah or 48V / 600Ah | Lead-acid: 48V / 700Ah; Lithium: 48V / 460Ah or 48V / 600Ah |
Product Overview
Product Details
Built for High-Rack Long-Material Storage
- Designed for customers who need to store long materials in narrow aisles and higher racking systems.
- Suitable for aluminium profiles, steel pipes, panels, timber and other long goods in medium-density storage environments.
- Dealers can position the MQZ Series as a space-saving solution for customers who need both height and long-load flexibility.
Reach Function with Multi-Directional Travel
- The reach mast helps operators place long loads more accurately during storage and retrieval.
- Multi-directional travel allows long materials to move through narrow aisles without large turning space.
- Customers benefit from better vertical storage use and improved long-load handling efficiency.
High Lift Capability for Better Storage Density
- Lift heights up to 10500 mm support high-rack warehouse applications.
- This is useful for customers who need to increase storage capacity without expanding warehouse footprint.
- It gives dealers a strong solution for warehouse optimisation projects involving long materials.
Faster Operation in High-Turnover Warehouses
- Fast travel mode switching helps operators change direction quickly during frequent handling tasks.
- Three speed modes allow operators to balance precision, safety and transfer efficiency.
- This supports high-turnover warehouses where long materials need frequent storage and retrieval.
Strong Fit for Specialist Warehouse Projects
- The MQZ25 / MQZ30 is more specialised than a standard reach truck or standard multi-directional forklift.
- It is suitable for customers who need narrow aisle access, high lifting and long-material handling in one machine.
- Dealers can use it to target higher-value projects in aluminium, steel, panel, timber and industrial storage markets.
Product Support
Frequently Asked Questions
Find answers to common questions about MQZ25 / MQZ30, or contact MiMA Australia for application-specific advice.
What is the load capacity of the MQZ25 / MQZ30?
The MQZ25 supports 2500 kg, while the MQZ30 supports 3000 kg.
What is the maximum lift height?
The maximum lift height is up to 10500 mm.
What makes the MQZ Series different from a standard reach truck?
It combines reach mast movement with multi-directional travel, making it suitable for long materials in narrow aisles.
Who is this model suitable for?
It is suitable for customers with high-rack storage, long materials and narrow aisle warehouse layouts.
Can I request a full technical data sheet?
Yes. Contact MiMA to receive the full specification sheet.
