MiMA
Multi-Directional Travel
Straight, sideways, diagonal and rotation modes.

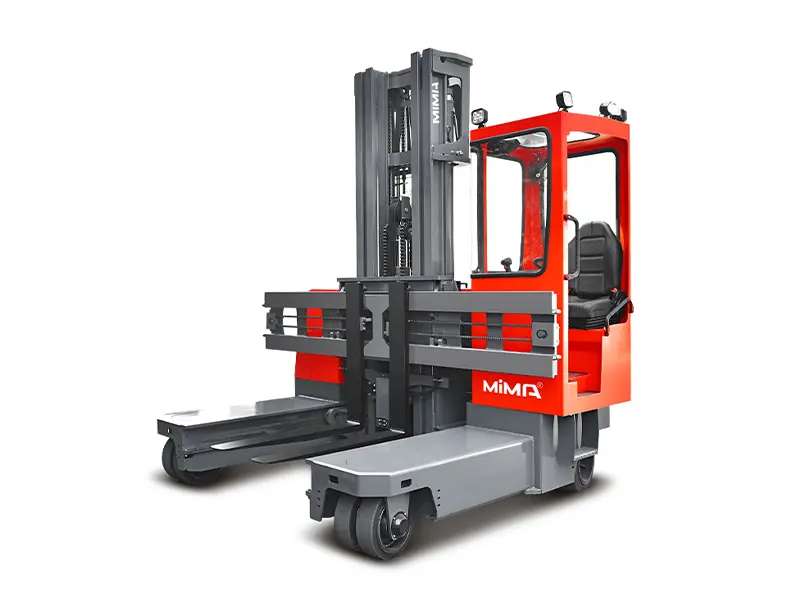

Multi directional Forklift
2.5–5.0 Ton Seated Wide-body Multi-Directional Forklift
Key Specification Bullets
- Model: MQC25 / MQC30 / MQC40 / MQC50
- Capacity: 2500–5000 kg
- Lift Height: Up to 8000 mm
The MQC Series seated multi-directional forklift is designed for efficient handling of long, wide, and oversized materials in narrow spaces. With multi-directional steering, wide fork adjustment, reach mast movement, and seated operator control, it provides a flexible solution for aluminium profiles, steel pipes, panels, timber, curtain wall materials, and other long-load applications.
Product Features
Product Highlights
Practical features developed for safer, more efficient material handling.
MiMA
Long Material Handling
Ideal for aluminium, steel, timber and panels.
MiMA
Wide Fork Adjustment
Adapts to different long-load widths.
MiMA
High-Lift Mast
Supports long-load stacking up to 8000 mm.
MiMA
AC Drive System
Efficient electric power for demanding work.
MiMA
Seated Operator Comfort
Ergonomic controls reduce daily operator fatigue.
Product Data
Technical Specifications
Compare the available MQC25 / MQC30 / MQC40 / MQC50 configurations, then speak with our team about your capacity, lift height and operating environment.
| Specification | MQC25 | MQC30 | MQC40 | MQC50 |
|---|---|---|---|---|
| Model | MQC25 | MQC30 | MQC40 | MQC50 |
| Operation Type | Seated | Seated | Seated | Seated |
| Load Capacity | 2500KG | 3000kg | 4000kg | 5000kg |
| Lift Height | Up to 8000 mm | Up to 8500 mm | Up to 8000 mm | Up to 8000 mm |
| Mast Type | -- | -- | -- | -- |
| Fork Outside Spread | 550-2100 mm | 560–2560 mm | 560–2800 mm | 560–2900 mm |
| Aisle Width | >2530 mm | >2750 mm | >2800 mm | >2800 mm |
| Battery Specification | Lead-acid: 48V / 500 Ah; Lithium: 48V /460 Ah | Lead-acid: 48V / 500–550Ah; Lithium: 48V / 460–600Ah | Lead-acid: 48V / 560Ah; Lithium: 48V / 460–600Ah | Lead-acid: 80V / 500Ah; Lithium: 80V / 460–600Ah |
Product Overview
Product Details
The MQC Series is MiMA’s standard seated multi-directional forklift range for long material handling. It is designed to move straight, sideways, diagonally, and rotate in place, allowing operators to handle long loads more safely and efficiently in narrow spaces.
Unlike conventional forklifts, the MQC Series can travel sideways with long materials, helping reduce aisle width requirements and improve storage density. The reach mast can move forward and backward, while wide adjustable forks help adapt to different load widths.
The series is suitable for aluminium profiles, steel pipes, sheet metal, timber, board materials, door and window systems, curtain wall materials, and other long or non-standard loads. With AC drive technology, electric steering, ergonomic controls, and high-capacity battery options, the MQC Series is a practical solution for demanding long-material warehouses and manufacturing operations.
Product Support
Frequently Asked Questions
Find answers to common questions about MQC25 / MQC30 / MQC40 / MQC50, or contact MiMA Australia for application-specific advice.
What materials can the MQC Series handle?
It is suitable for aluminium profiles, steel pipes, panels, timber, curtain wall materials, and other long or wide loads.
What travel modes does this forklift support?
It supports straight travel, sideways travel, diagonal travel, and in-place rotation.
What is the maximum load capacity?
The MQC Series covers capacities from 2500 kg to 8000 kg.
What is the maximum lift height?
The MQC Series can support lift heights up to 8500 mm, depending on configuration.
Is this forklift suitable for narrow aisles?
Yes. Sideways travel allows long materials to be moved through narrower aisles than conventional forklifts.
Can I request a full technical data sheet?
Yes. Contact MiMA to receive the full specification sheet and confirm the correct model for your application.
